BTC2059N3 - Gentral Purpose NPN Epitaxial Planar Transistor

BTC2059N3 Description

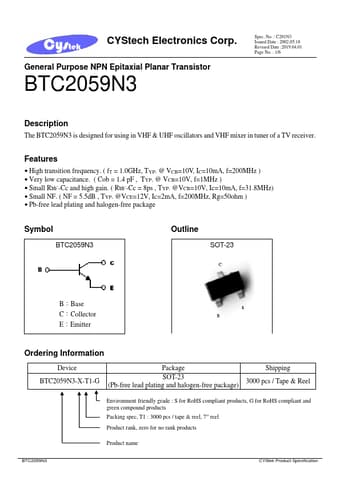

www.DataSheet4U.com CYStech Electronics Corp.Spec.No.: C201N3 Issued Date : 2002.05.18 Revised Date : 2002.10.31 Page No.: 1/4 Gentral Purpose .
The BTC2059N3 is designed for using in VHF & UHF oscillators and VHF mixer in tuner of a TV receiver. High transition frequency.

BTC2059N3 Features

* High transition frequency. ( fT = 1.0GHz, TYP. @ VCB=10V, IC=10mA, f=200MHz )
* Very low capacitance. ( Cob = 1.4 pF , TYP. @ VCB=10V, f=1MHz )
* Small rbb’-Cc and high gain. ( rbb’-Cc = 8ps , TYP. @VCB=10V, Ic=10mA, f=31.8MHz)
* Small NF. ( NF = 5.5dB , TYP. @VCE=1

BTC2059N3 Applications

* or systems.
* CYStek assumes no liability for any consequence of customer product design, infringement of patents, or application assistance. BTC2059N3 CYStek Product Specification
