DTC123YC3 - NPN Digital Transistors

Product Overview

Cystech Electonics

📥 Download Datasheet

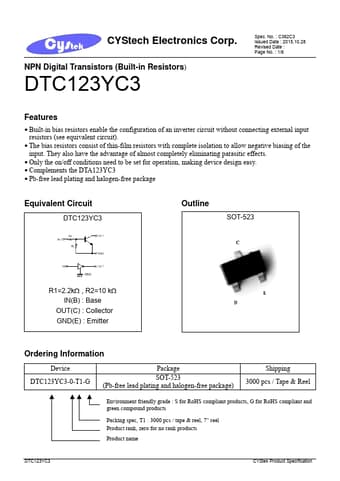

DTC123YC3 NPN Digital Transistors by Cystech Electonics - Datasheet Preview — Datasheet preview – DTC123YC3

Datasheet Details

Part number	DTC123YC3
Manufacturer	Cystech Electonics
File Size	297.81 KB
Description	NPN Digital Transistors
Datasheet	DTC123YC3 Datasheet
Additional preview pages of the DTC123YC3 datasheet.

Product details

Features

Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
Complements the DTA123YC3.
Pb-.
