MTB5D8N03ARV8 - N-Channel Enhancement Mode Power MOSFET

Datasheet Summary

Features

  • Low Gate Charge.
  • Fast Switching Characteristic BVDSS ID@VGS=10V, TC=25°C ID@VGS=10V, TA=25°C RDS(ON) typ. @ VGS=10V, ID=12A RDS(ON) typ. @ VGS=4.5V, ID=9A 30V 15A 12A 5.8mΩ 9mΩ Equivalent Circuit MTB5D8N03ARV8 Outline DFN3×3 Ordering Information Device Package Shipping DFN3×3 MTB5D8N03ARV8-0-T6-G (Pb-free lead plating and halogen-free package) 3000 pcs / Tape & Reel Environment friendly grade : S for RoHS compliant products, G for RoHS compliant and green compound p.

📥 Download Datasheet

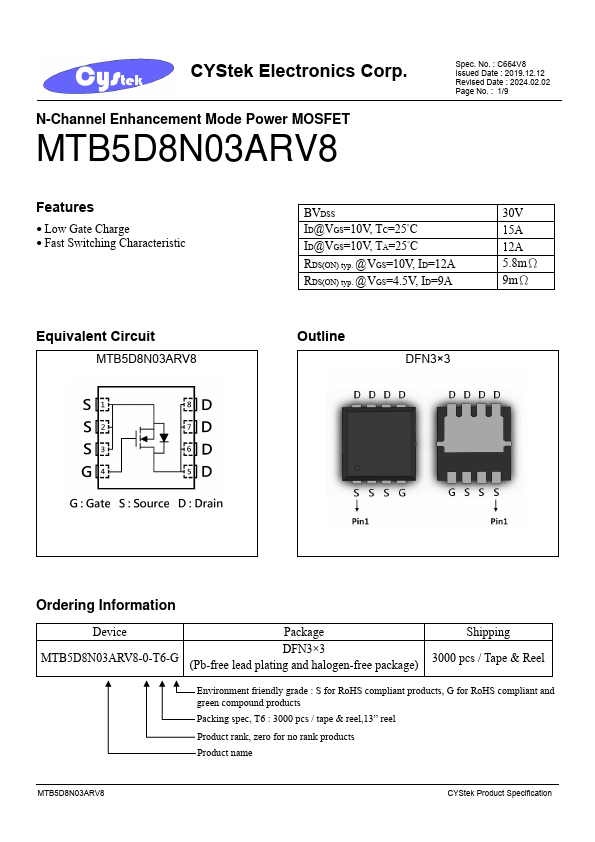

Datasheet preview – MTB5D8N03ARV8

Datasheet Details

Part number MTB5D8N03ARV8
Manufacturer Cystech Electonics
File Size 537.82 KB
Description N-Channel Enhancement Mode Power MOSFET
Datasheet download datasheet MTB5D8N03ARV8 Datasheet

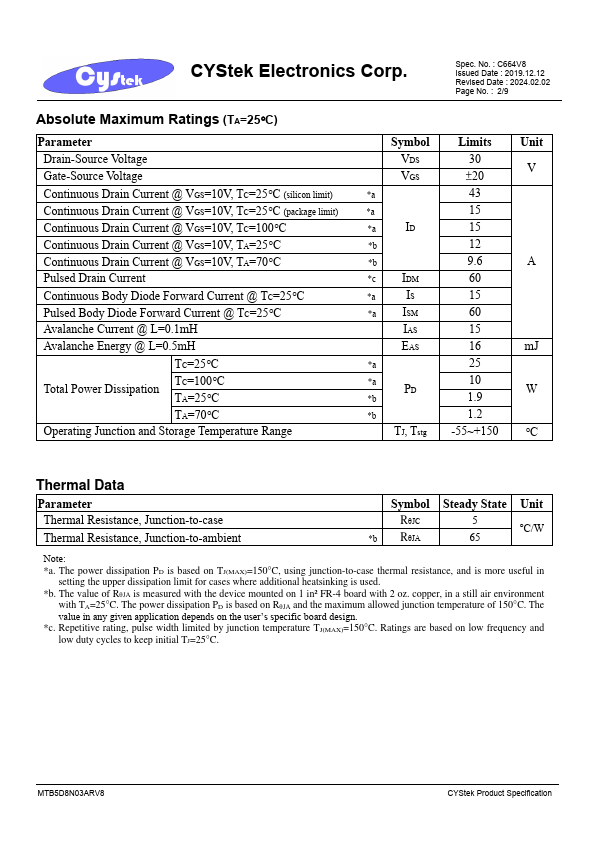

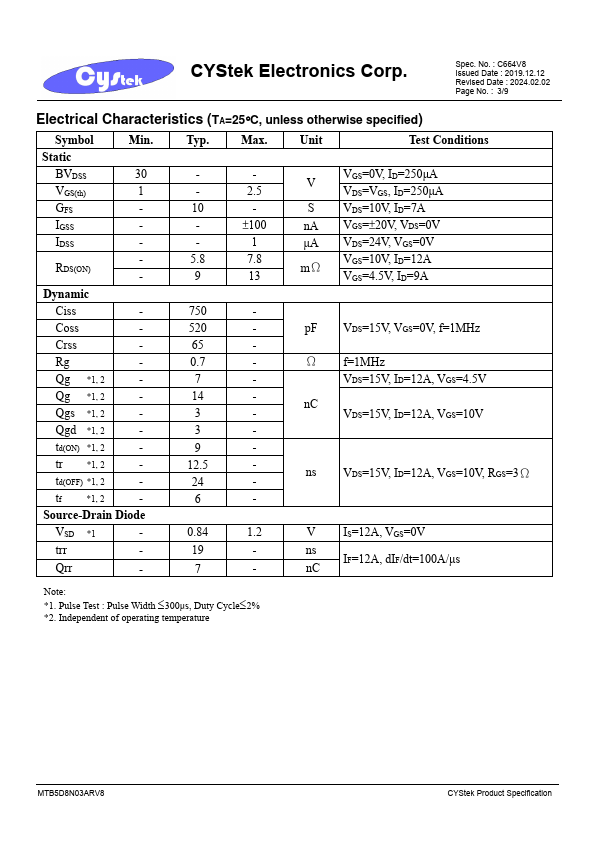

Additional preview pages of the MTB5D8N03ARV8 datasheet.

📁 Similar Datasheet

Other Datasheets by Cystech Electonics
  • MTB5D0C03J4 - N- and P-channel enhancement mode power MOSFET
  • MTB5D0P03H8 - P-Channel Enhancement Mode Power MOSFET
  • MTB5D0P03J3 - P-Channel Enhancement Mode Power MOSFET
  • MTB5D0P03Q8 - P-Channel Enhancement Mode Power MOSFET
  • MTB50N10E3 - N-Channel Enhancement Mode Power MOSFET
  • MTB011N10RQ8 - N-Channel Enhancement Mode Power MOSFET
  • MTB012N04J3 - N-Channel Enhancement Mode Power MOSFET
  • MTB012N04Q8 - N-Channel Enhancement Mode Power MOSFET

Full PDF Text Transcription

Click to expand full text
CYStek Electronics Corp. N-Channel Enhancement Mode Power MOSFET MTB5D8N03ARV8 Spec. No. : C664V8 Issued Date : 2019.12.12 Revised Date : 2024.02.02 Page No. : 1/9 Features • Low Gate Charge • Fast Switching Characteristic BVDSS ID@VGS=10V, TC=25°C ID@VGS=10V, TA=25°C RDS(ON) typ. @ VGS=10V, ID=12A RDS(ON) typ. @ VGS=4.5V, ID=9A 30V 15A 12A 5.
