PL7808XE3

Low Current Positive Voltage Regulator

PL7808XE3 General Description

The PL7808XE3 series of three-terminal positive regulators are available in the TO-220AB package. These regulators can provide www.DataSheet4U.com TO-220AB local on -card regulation, eliminating the distribution problems associated with single point regulation. Each employs internal current limiting.

PL7808XE3 Datasheet (138.72 KB)

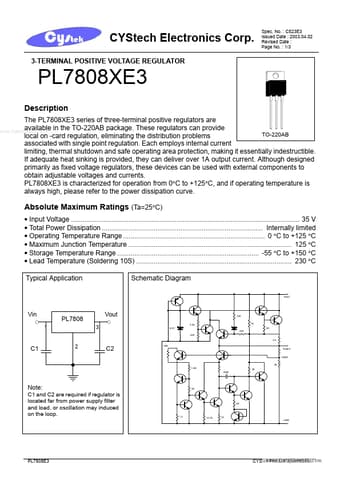

Preview of PL7808XE3 PDF

Datasheet Details

Part number:

PL7808XE3

Manufacturer:

Cystech Electonics

File Size:

138.72 KB

Description:

Low current positive voltage regulator.
CYStech Electronics Corp. 3-TERMINAL POSITIVE VOLTAGE REGULATOR Spec. No. : C523E3 Issued Date : 2003.04.02 Revised Date : Page No. : 1/3 PL7808XE3 .
