HC-SR04 Datasheet, Manual, Cytron

HC-SR04 Features

  • Manual
  • Power Supply :+5V DC
  • Quiescent Current : <2mA
  • Working Currnt: 15mA
  • Effectual Angle: <15°
  • Ranging Distance : 2cm
      – 400

PDF File Details

Part number:

HC-SR04

Manufacturer:

Cytron

File Size:

4.75MB

Download:

📄 Datasheet

Description:

Ultrasonic sensor user manual.

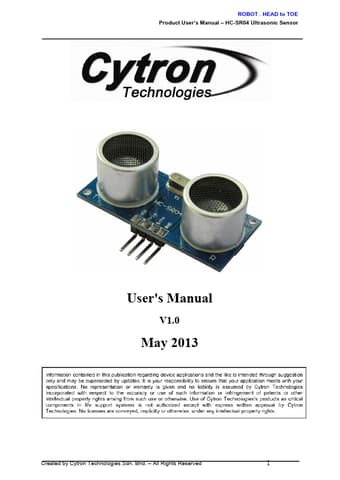

Datasheet Preview: HC-SR04 📥 Download PDF (4.75MB)
Page 2 of HC-SR04 Page 3 of HC-SR04
