SFF8005 SUPER FAST GLASS PASSIVATED RECTIFIERS

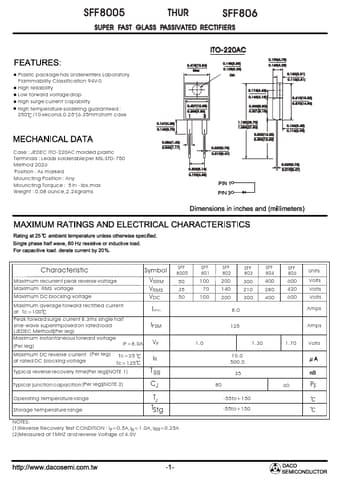

SFF8005 THUR SFF806 SUPER FAST GLASS PASSIVATED RECTIFIERS Plastic package has Underwriters Laboratory Flammability Classification 94V-0 High reliability Low forward voltage drop High surge current capability High temperature soldering guaranteed : 250 /10 second,0.25"(6.35mm)from case Case : JEDEC ITO-220AC molded plastic Terminals : Leads solderable per MIL-STD-750 Method 2026 Position : As marked Mouncting Position : Any Mouncting Torquce : 5 in - lbs.max Weight : 0.08 ounce,2.24grams IT.

SFF8005 Datasheet (352.36 KB)
