DHD08063 Datasheet - DAICO Industries

DHD08063 IF / AGC HYBRID

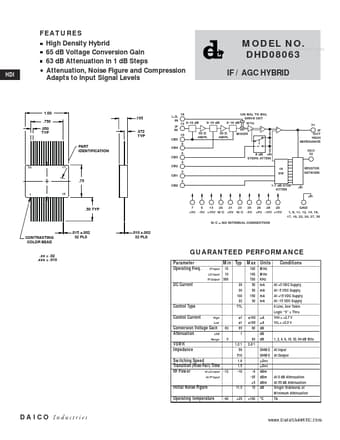

F E AT U R E S High Density Hybrid 65 dB Voltage Conversion Gain 63 dB Attenuation in 1 dB Steps Attenuation, Noise Figure and Compression Adapts to Input Signal Levels MODEL NO. www.DataSheet4U.com DHD08063 IF / AGC HYBRID HDI 1.00 .750 .050 TYP .195 .072 TYP PART IDENTIFICATION L.O. IN IF IN CB5 18 15 0/16 dB 10 6 0/16 dB 0/16 dB UN BAL TO BAL DRIVE CKT WTA + + - 31 IF OUT HIGH IMPEDANCE ADJ1 50 Ω AMPL 50 Ω AMPL MIXER CB4 5 CB3 4 8 dB STEPS ATTEN 18 SW 32 32 17 CB2 3 CB1 RESISTO.

DHD08063_DAICOIndustries.pdf

Preview of DHD08063 PDF

Datasheet Details

Part number:

DHD08063

Manufacturer:

DAICO Industries

File Size:

50.92 KB

Description:

If / agc hybrid.
