DSW16186

PIN Diode SPST

DSW16186 Features

* 8 - 12 GHz

* 70 dB Isolation

* 1.4 dB Insertion Loss

* 30 nSec Switching Speed PIN Diode SPST

* TTL Control

* Replaceable SMA Connectors SPST www.DataSheet4U.com DAICO 92 Industries 310.507.3242

* FAX 310.507.5701

* www.daico.com

DSW16186 Datasheet (173.52 KB)

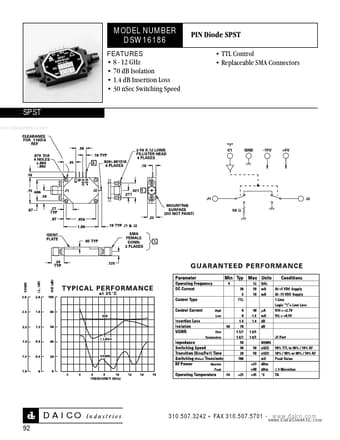

Preview of DSW16186 PDF

Datasheet Details

Part number:

DSW16186

Manufacturer:

DAICO Industries

File Size:

173.52 KB

Description:

Pin diode spst.
