DAC-1425 Datasheet, Converters, DATEL

DAC-1425 Features

  • Converters n 14-Bit resolution n 250MSPS conversion rate n 2mA -20mA output current n Operates from single +2.7 to +3.6 Volt supply n Low power, 120mW n Internal +1.24 Volt reference - optional ex

PDF File Details

Part number:

DAC-1425

Manufacturer:

DATEL

File Size:

427.92kb

Download:

📄 Datasheet

Description:

Low-power d/a converters. / BLOCK DIAGRAM INPUT/OUTPUT CONNECTIONS PIN FUNCTION PIN FUNCTION 1 BIT 1 (MSB) 28 CLK 2 BIT 2 27 DVDD 3 BIT 3 26 DGND 4

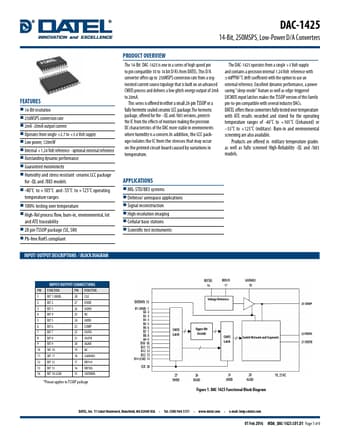

Datasheet Preview: DAC-1425 📥 Download PDF (427.92kb)
Page 2 of DAC-1425 Page 3 of DAC-1425

DAC-1425 Application

  • Applications n MIL-STD/883 systems n Defense/ aerospace applications n Signal reconstruction n High resolution imaging n Cellular base stations n 4D
