NT75-1

(NT75-1 / NT75-2) Low coil consumption

NT75-1 Features

* Small size, light weight. Low coil consumption. Switching capacity up to 16A. PC board mounting. Suitable for household electrical appliance, automation system, telecommunication facilities and remote control facilities. www.DataSheet4U.com R2033977.02 on Pending Patent No. 98324524X 98324532.1 el

NT75-1 Datasheet (267.44 KB)

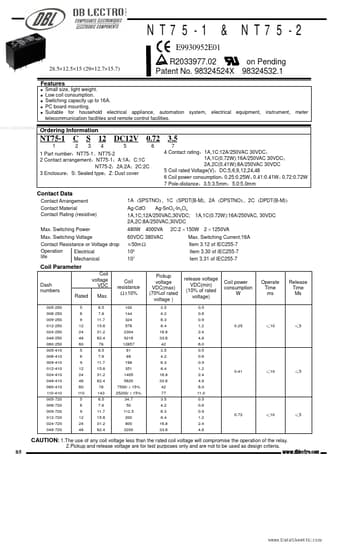

Preview of NT75-1 PDF

Datasheet Details

Part number:

NT75-1

Manufacturer:

DB Lectro

File Size:

267.44 KB

Description:

(nt75-1 / nt75-2) low coil consumption.
