1N4150 - HIGH SPEED SWITCHING DIODES

This page provides the datasheet information for the 1N4150, a member of the 1N4148 HIGH SPEED SWITCHING DIODES family.

Datasheet Summary

Features

  • Silicon epitaxial planar diodes.
  • Low power loss, high efficiency.
  • Low leakage.
  • Low forward voltage.
  • High speed switching.
  • High current capability.
  • High reliability.

📥 Download Datasheet

Datasheet preview – 1N4150

Datasheet Details

Part number 1N4150
Manufacturer DC COMPONENTS
File Size 167.90 KB
Description HIGH SPEED SWITCHING DIODES
Datasheet download datasheet 1N4150 Datasheet

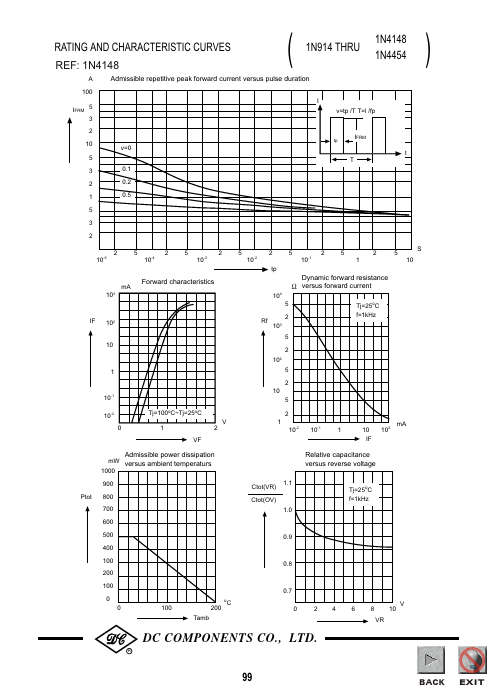

Additional preview pages of the 1N4150 datasheet.

📁 Similar Datasheet

  • 1N4150 - Small Signal Fast Switching Diodes (Vishay)
  • 1N4150 - FAST SWITCHING DIODE (SMC Diode)
  • 1N4150 - HIGH SPEED SWITCHING DIODE (Rectron)
  • 1N4150 - FAST SWITCHING SURFACE MOUNT DIODES (PANJIT)
  • 1N4150 - SMALL SIGNAL SWITCHING DIODES (Sunmate)
  • 1N4150 - HIGH SPEED SWITCHING DIODE (EIC)
  • 1N4150-1 - SWITCHING DIODES (Compensated Deuices Incorporated)
  • 1N4150-1 - Silicon Switching Diode (MA-COM)
  • 1N4150-1 - SWITCHING DIODE (Microsemi)
  • 1N4150-1 - Silicon Switching Diodes (Aeroflex)
Other Datasheets by DC COMPONENTS
  • 1N4151 - HIGH SPEED SWITCHING DIODES
  • 1N4154 - HIGH SPEED SWITCHING DIODES
  • 1N4148 - HIGH SPEED SWITCHING DIODES
  • 1N4001A - SILICON RECTIFIER
  • 1N4001G - GENERAL PURPOSE SILICON RECTIFIER
  • 1N4002A - SILICON RECTIFIER
  • 1N4002G - GENERAL PURPOSE SILICON RECTIFIER
  • 1N4003A - SILICON RECTIFIER

Full PDF Text Transcription

Click to expand full text

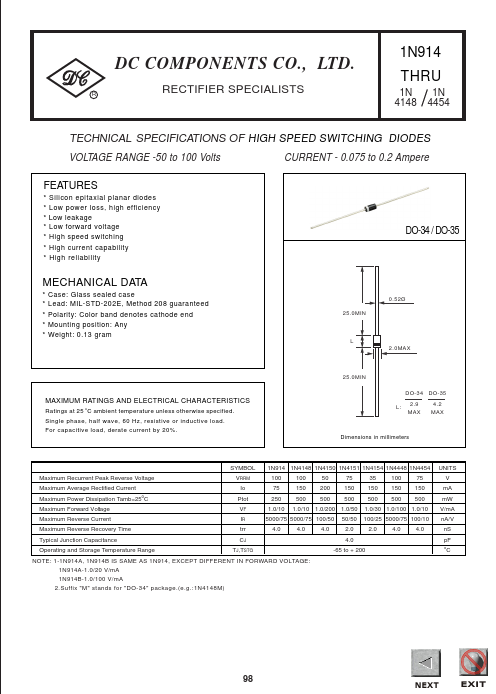

DC COMPONENTS CO., LTD. R RECTIFIER SPECIALISTS 1N914 THRU 1N 1N 4148 4454 TECHNICAL SPECIFICATIONS OF HIGH SPEED SWITCHING DIODES VOLTAGE RANGE -50 to 100 Volts CURRENT - 0.075 to 0.2 Ampere FEATURES * Silicon epitaxial planar diodes * Low power loss, high efficiency * Low leakage * Low forward voltage * High speed switching * High current capability * High reliability MECHANICAL DATA * Case: Glass sealed case * Lead: MIL-STD-202E, Method 208 guaranteed * Polarity: Color band denotes cathode end * Mounting position: Any * Weight: 0.13 gram DO-34 / DO-35 25.0MIN 0.52Ø L 2.0MAX MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load.
