6A10, 6A1 SILICON RECTIFIER

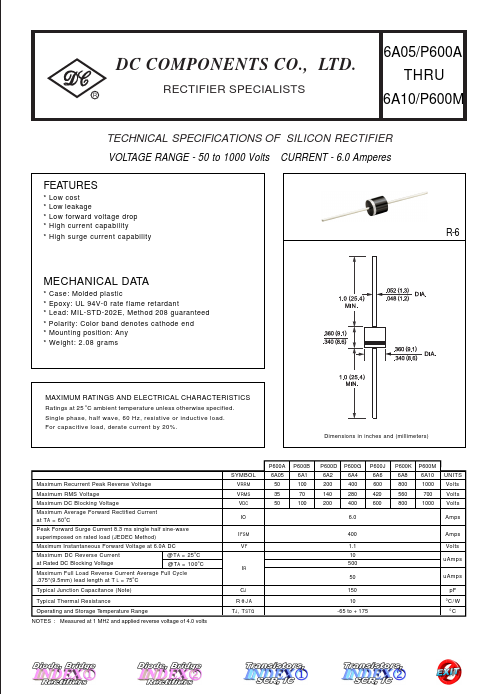

📥 Download Datasheet  Datasheet Preview Page 1

Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS 6A05/P600A THRU 6A10/P600M TECHNICAL SPECIFICATIONS OF SILICON RECTIFIER VOLTAGE RANGE - 50 to 100.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 6A10, 6A1. Please refer to the document for exact specifications by model.

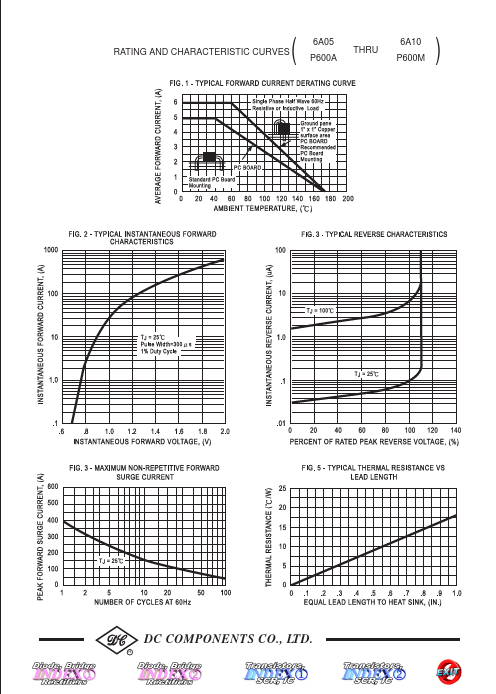

datasheet Preview Page 2

Datasheet Specifications

Part number
6A10, 6A1
Manufacturer
DC COMPONENTS
File Size
445.31 KB
Datasheet
6A1-DCCOMPONENTS.pdf
Description
SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 6A10, 6A1.
Please refer to the document for exact specifications by model.

Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability
* High surge current capability R-6 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color ban
