6A2 SILICON RECTIFIER

DC COMPONENTS

Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS 6A05/P600A THRU 6A10/P600M TECHNICAL SPECIFICATIONS OF SILICON RECTIFIER VOLTAGE RANGE - 50 to 100.

📥 Download Datasheet

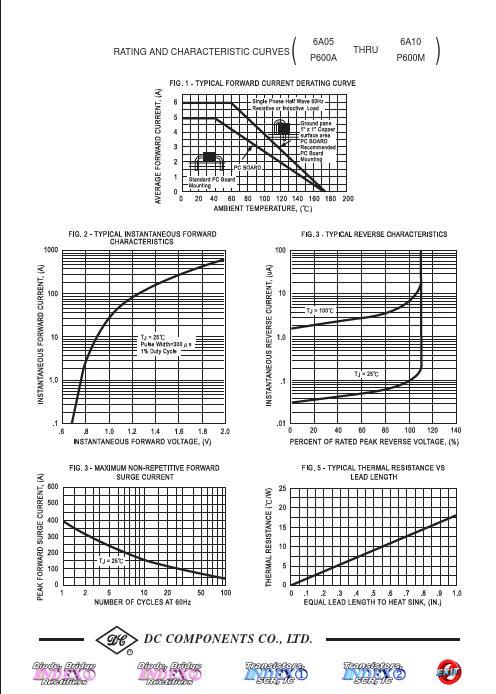

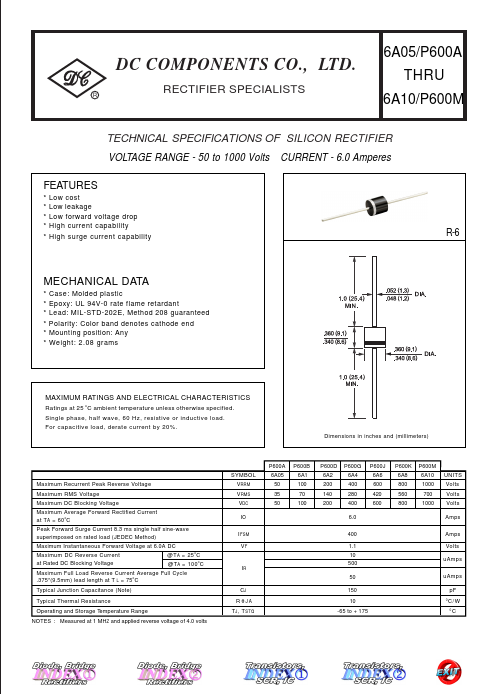

6A2 Datasheet Preview — Preview of 6A2 PDF

Datasheet Specifications

Part number: 6A2
Manufacturer: DC COMPONENTS
File Size: 445.31 KB
Datasheet: 6A2-DCCOMPONENTS.pdf
Description: SILICON RECTIFIER

Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability
* High surge current capability R-6 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color ban
