BR305 RECTIFIER SPECIALISTS

BR305 Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS KBPC BR 1005 305 THRU KBPC BR 110 310 TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECT.

BR305 Features

* Surge overloa rating: 50 Amperes peak
* Low forward voltage drop
* Small size: simple installation BR-3 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed Symbols molded or marked on body
* Mountin

📥 Download Datasheet

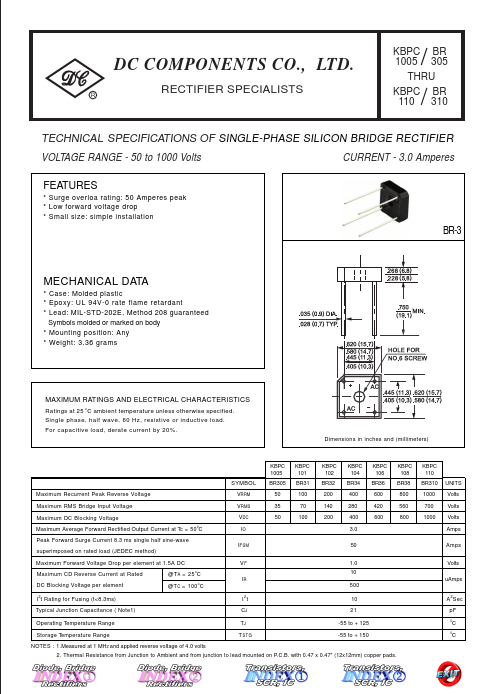

Preview of BR305 PDF

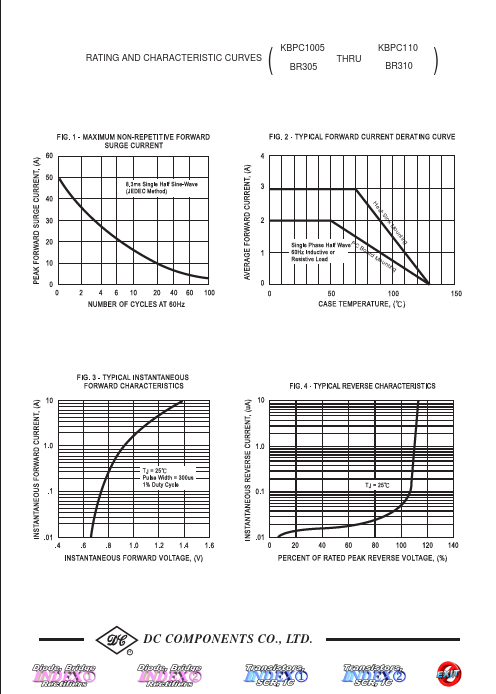

datasheet Preview Page 2

Datasheet Details

Part number
BR305
Manufacturer
DC COMPONENTS
File Size
402.91 KB
Datasheet
BR305-DCCOMPONENTS.pdf
Description
RECTIFIER SPECIALISTS
