BR310, BR305 RECTIFIER SPECIALISTS

DC COMPONENTS

Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS KBPC BR 1005 305 THRU KBPC BR 110 310 TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECT.

📥 Download Datasheet

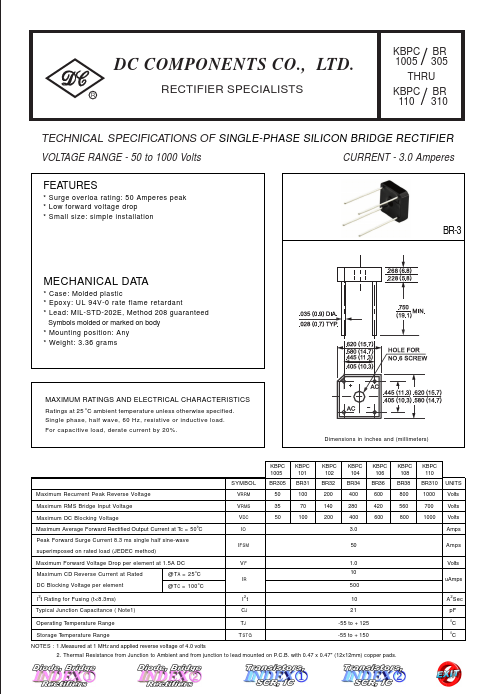

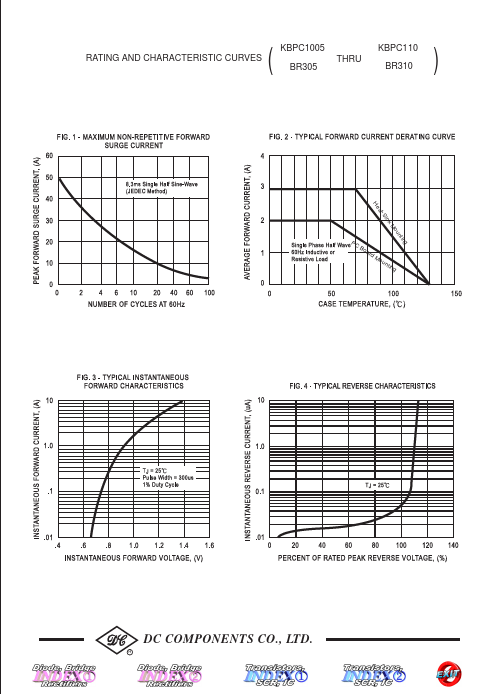

BR310 Datasheet Preview — This datasheet PDF includes multiple part numbers: BR310, BR305. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BR310, BR305
Manufacturer: DC COMPONENTS
File Size: 402.91 KB
Datasheet: BR305-DCCOMPONENTS.pdf
Description: RECTIFIER SPECIALISTS
Note: This datasheet PDF includes multiple part numbers: BR310, BR305.
Please refer to the document for exact specifications by model.

Features

* Surge overloa rating: 50 Amperes peak
* Low forward voltage drop
* Small size: simple installation BR-3 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed Symbols molded or marked on body
* Mountin
