This page provides the datasheet information for the BR38, a member of the BR305 RECTIFIER SPECIALISTS family.

Datasheet Summary

Features

  • Surge overloa rating: 50 Amperes peak.
  • Low forward voltage drop.
  • Small size: simple installation BR-3.

📥 Download Datasheet

Datasheet preview – BR38

Datasheet Details

Part number BR38
Manufacturer DC COMPONENTS
File Size 402.91 KB
Description RECTIFIER SPECIALISTS
Datasheet download datasheet BR38 Datasheet

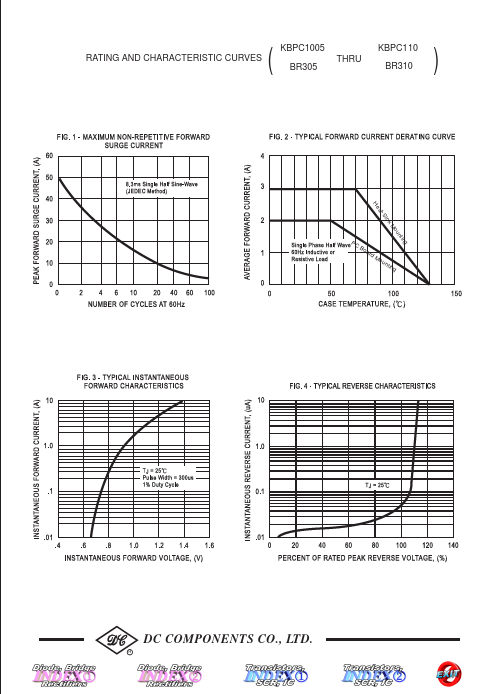

Additional preview pages of the BR38 datasheet.

📁 Similar Datasheet

  • BR38 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (Rectron)
  • BR38 - Silicon Bridge Rectifier (America Semiconductor)
  • BR38 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • BR38 - SINGLE-PHASE SILICON BRIDGE RECTIFIER (WILLAS)
  • BR38 - Silicon Bridge Rectifiers (LGE)
  • BR38 - Silicon Bridge Rectifier (GeneSiC)
  • BR38 - SINGLE-PHASE BRIDGE RECTIFIER (Sunmate)
  • BR300 - 1 A Non-Isolated Step Down DC/DC Converter Module (Sanken)
  • BR3005 - (BR3005 - BR310) SILICON BRIDGE RECTIFIERS (HY ELECTRONIC)
  • BR301 - 1 A Non-Isolated Step Down DC/DC Converter Module (Sanken)
Other Datasheets by DC COMPONENTS
  • BR305 - RECTIFIER SPECIALISTS
  • BR31 - RECTIFIER SPECIALISTS
  • BR310 - RECTIFIER SPECIALISTS
  • BR310L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • BR32 - RECTIFIER SPECIALISTS
  • BR34 - RECTIFIER SPECIALISTS
  • BR3505L - (BR3505L - BR3510L) TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER
  • BR3505W - TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER

Full PDF Text Transcription

Click to expand full text

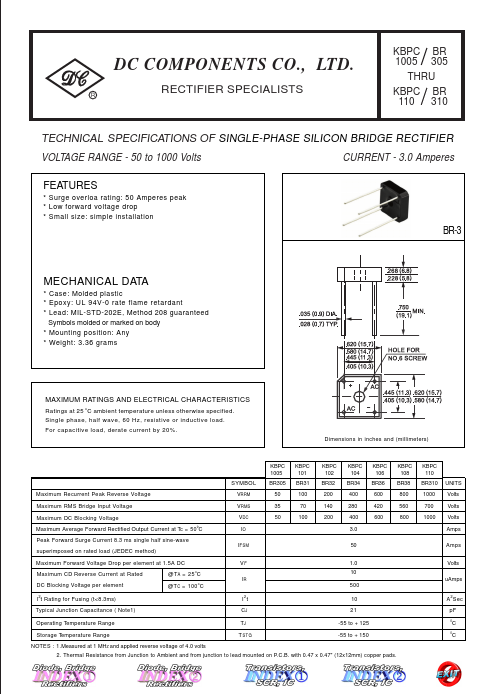

DC COMPONENTS CO., LTD. R RECTIFIER SPECIALISTS KBPC BR 1005 305 THRU KBPC BR 110 310 TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 3.0 Amperes FEATURES * Surge overloa rating: 50 Amperes peak * Low forward voltage drop * Small size: simple installation BR-3 MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: MIL-STD-202E, Method 208 guaranteed Symbols molded or marked on body * Mounting position: Any * Weight: 3.36 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
