KBPC1005 - RECTIFIER SPECIALISTS

Datasheet Summary

Features

  • Surge overloa rating: 50 Amperes peak.
  • Low forward voltage drop.
  • Small size: simple installation BR-3.

📥 Download Datasheet

Datasheet preview – KBPC1005

Datasheet Details

Part number KBPC1005
Manufacturer DC COMPONENTS
File Size 398.86 KB
Description RECTIFIER SPECIALISTS
Datasheet download datasheet KBPC1005 Datasheet

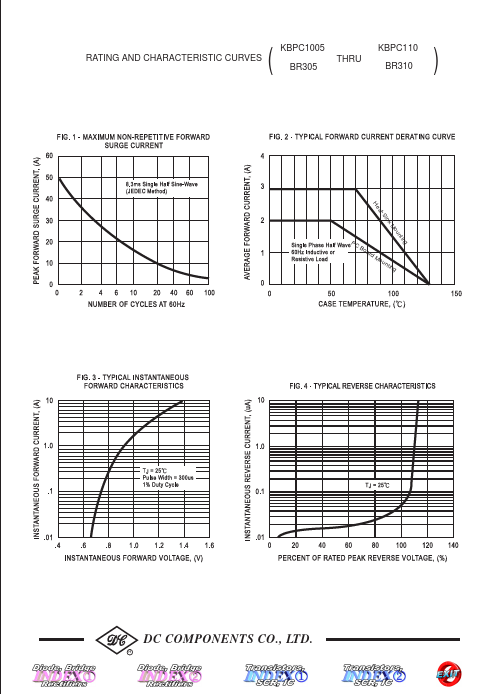

Additional preview pages of the KBPC1005 datasheet.

📁 Similar Datasheet

  • KBPC1005 - 3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER (Invac)
  • KBPC1005 - SILICON BRIDGE RECTIFIERS (Sunmate)
  • KBPC1005 - 10A Single-Phase Silicon Bridge Rectifier (EVVO)
  • KBPC1005 - Bridge Rectifiers (Yangzhou Yangjie)
  • KBPC1005 - Bridge Rectifiers (RFE)
  • KBPC1005 - SILICON BRIDGE RECTIFIERS (SAMYANG)
  • KBPC1005 - Single Phase Rectifier Bridge (Vishay)
  • KBPC1005 - SINGLE-PHASE BRIDGE RECTIFIER (MIC)
  • KBPC1005 - 10A Single-Phase Silicon Bridge Rectifier (SIECOME ELECTRONIC)
  • KBPC100 - 3.0 AMPERE SINGLE-PHASE SILICON BRIDGE RECTIFIER (ETC)
Other Datasheets by DC COMPONENTS

Full PDF Text Transcription

Click to expand full text

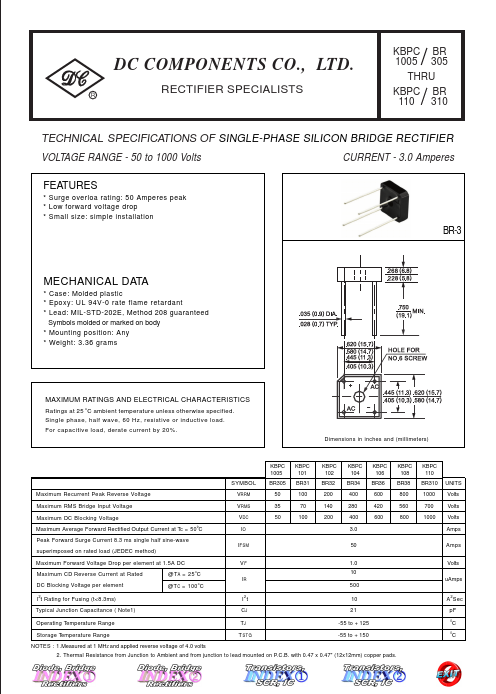

DC COMPONENTS CO., LTD. R RECTIFIER SPECIALISTS KBPC BR 1005 305 THRU KBPC BR 110 310 TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE - 50 to 1000 Volts CURRENT - 3.0 Amperes FEATURES * Surge overloa rating: 50 Amperes peak * Low forward voltage drop * Small size: simple installation BR-3 MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: MIL-STD-202E, Method 208 guaranteed Symbols molded or marked on body * Mounting position: Any * Weight: 3.36 grams MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
