KBPC101, KBPC1005 - RECTIFIER SPECIALISTS

KBPC101 Description

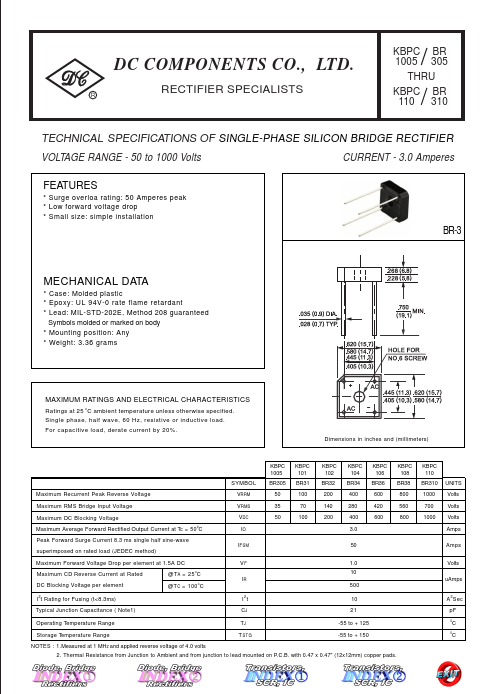

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS KBPC BR 1005 305 THRU KBPC BR 110 310 TECHNICAL SPECIFICATIONS OF SINGLE-PHASE SILICON BRIDGE RECT.

KBPC101 Features

* Surge overloa rating: 50 Amperes peak
* Low forward voltage drop
* Small size: simple installation BR-3 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed Symbols molded or marked on body
* Mountin

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KBPC101, KBPC1005. Please refer to the document for exact specifications by model.

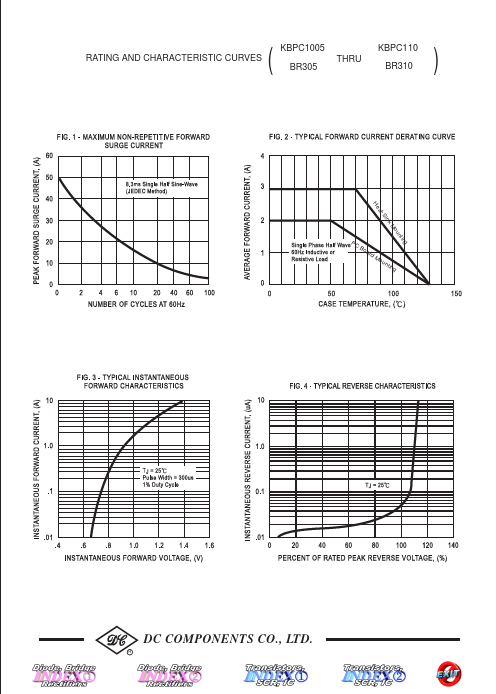

datasheet Preview Page 2

Datasheet Details

Part number
KBPC101, KBPC1005
Manufacturer
DC COMPONENTS
File Size
398.86 KB
Datasheet
KBPC1005-DCCOMPONENTS.pdf
Description
RECTIFIER SPECIALISTS
Note
This datasheet PDF includes multiple part numbers: KBPC101, KBPC1005.
Please refer to the document for exact specifications by model.
