MB4F SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

MB4F Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS MB05F THRU MB10F TECHNICAL SPECIFICATIONS OF SURFACEMOUNTGLASSPASSIVATED BRIDGERECTIFIER VOLTAGE RA.

MB4F Features

* High surge current capability
* Ideal for printed circuit board
* Glass passivated junction MBF MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: MIL-STD-202E, Method 208 guaranteed
* Polarity: Symbols molded or marked on body

📥 Download Datasheet

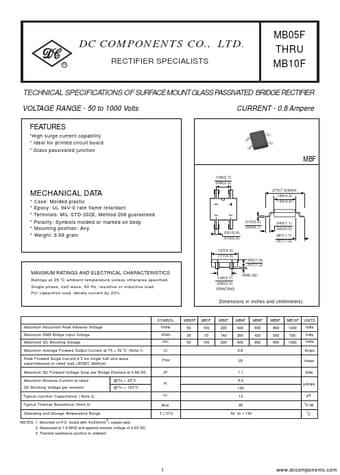

Preview of MB4F PDF
datasheet Preview Page 2

Datasheet Details

Part number
MB4F
Manufacturer
DC COMPONENTS
File Size
32.20 KB
Datasheet
MB4F-DCCOMPONENTS.pdf
Description
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
