S2ABF GENERAL PURPOSE SILICON RECTIFIER

DC COMPONENTS

S2ABF Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS S2ABF THRU S2MBF TECHNICAL SPECIFICATIONS OF GENERAL PURPOSE SILICON RECTIFIER VOLTAGE RANGE - 50 t.

S2ABF Applications

* Glass passivated junction
* Low leakage current SMBFL MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rated flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.06 gram

📥 Download Datasheet

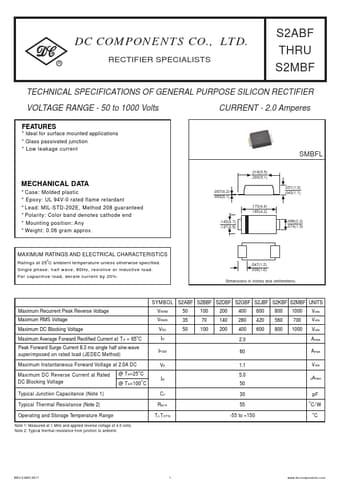

S2ABF Datasheet Preview — Preview of S2ABF PDF

Datasheet Details

Part number: S2ABF
Manufacturer: DC COMPONENTS
File Size: 37.94 KB
Datasheet: S2ABF-DCCOMPONENTS.pdf
Description: GENERAL PURPOSE SILICON RECTIFIER
