S2KBF GENERAL PURPOSE SILICON RECTIFIER

S2KBF Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS S2ABF THRU S2MBF TECHNICAL SPECIFICATIONS OF GENERAL PURPOSE SILICON RECTIFIER VOLTAGE RANGE - 50 t.

S2KBF Applications

* Glass passivated junction
* Low leakage current SMBFL MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rated flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting position: Any
* Weight: 0.06 gram

📥 Download Datasheet

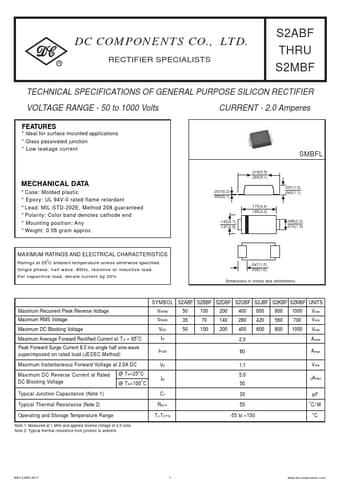

Preview of S2KBF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S2KBF
Manufacturer
DC COMPONENTS
File Size
33.35 KB
Datasheet
S2KBF-DCCOMPONENTS.pdf
Description
GENERAL PURPOSE SILICON RECTIFIER
