SA120A, SA100 TRANSIENT VOLTAGE SUPPRESSOR

SA120A Description

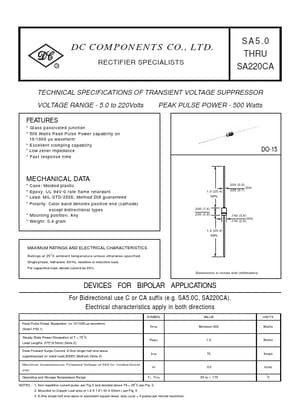

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS SA5.0 THRU SA220CA TECHNICAL SPECIFICATIONS OF TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE RANGE - 5.0 to 2.

SA120A Features

* Glass passivated junction
* 500 Watts Peak Pulse Power capability on 10/1000 µs waveform
* Excellent clamping capability
* Low zener impedance
* Fast response time DO-15 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SA120A, SA100. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SA120A, SA100
Manufacturer
DC COMPONENTS
File Size
38.99 KB
Datasheet
SA100-DCCOMPONENTS.pdf
Description
TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: SA120A, SA100.
Please refer to the document for exact specifications by model.
