* Glass passivated junction
* 500 Watts Peak Pulse Power capability on 10/1000 µs waveform
* Excellent clamping capability
* Low zener impedance
* Fast response time DO-15 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-
SA220
DC COMPONENTS
38.99 KB
Transient voltage suppressor.

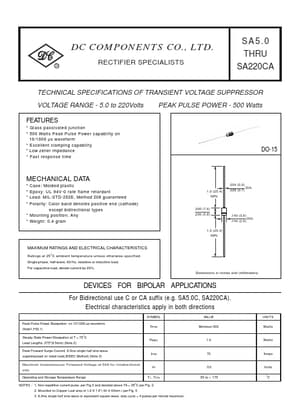

DC COMPONENTS CO., LTD.
R RECTIFIER SPECIALISTS
SA5.0 THRU SA220CA
TECHNICAL SPECIFICATIONS OF TRANSIENT VOLTAGE SUPPRESSOR VOLTAGE RANGE - 5.0 to 2.
