SK58, SK52 SURFACE MOUNT SCHOTTKYBARRIERDIODE

SK58 Description

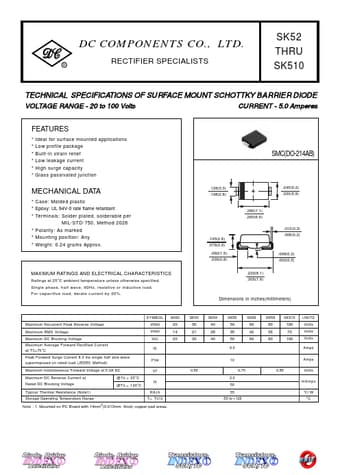

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS SK52 THRU SK510 TECHNICAL SPECIFICATIONS OF SURFACE MOUNT SCHOTTKY BARRIER DIODE VOLTAGE RANGE - 20.

SK58 Applications

* Low profile package
* Built-in strain relief
* Low leakage current
* High surge capacity
* Glass passivated junction MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Terminals: Solder plated, solderable per MIL-STD-750, Method 2026

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SK58, SK52. Please refer to the document for exact specifications by model.

Datasheet Details

Part number
SK58, SK52
Manufacturer
DC COMPONENTS
File Size
207.70 KB
Datasheet
SK52-DCCOMPONENTS.pdf
Description
SURFACE MOUNT SCHOTTKYBARRIERDIODE
Note
This datasheet PDF includes multiple part numbers: SK58, SK52.
Please refer to the document for exact specifications by model.
