BU-61570, BU-61580 Bus Controller / Remote Terminal / Monitor Terminal - BC/RT/MT

DDC

Description

BU-65170/61580 and BU-61585 MIL-STD-1553A/B NOTICE 2 RT and BC/RT/MT, ADVANCED COMMUNICATION ENGINE (ACE) ACE User’s Guide Also Available .
DDC's BU-65170, BU-61580 and BU-61585 Bus Controller / Remote Terminal / Monitor Terminal (BC/RT/MT) A d v a n c e d Communication Engine (ACE) termin.

📥 Download Datasheet

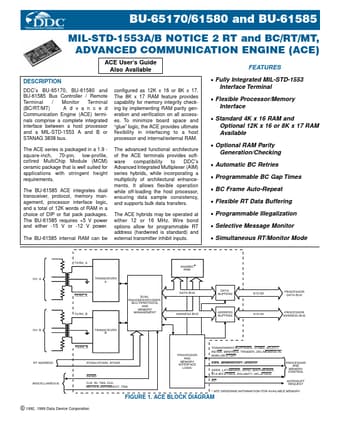

BU-61570 Datasheet Preview — This datasheet PDF includes multiple part numbers: BU-61570, BU-61580. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BU-61570, BU-61580
Manufacturer: DDC
File Size: 668.57 KB
Datasheet: BU-61580_DDC.pdf
Description: Bus Controller / Remote Terminal / Monitor Terminal - BC/RT/MT
Note: This datasheet PDF includes multiple part numbers: BU-61570, BU-61580.
Please refer to the document for exact specifications by model.

Features

* Fully Integrated MIL-STD-1553 Interface Terminal Interface
* Flexible Processor/Memory
* Standard 4K x 16 RAM and
* Optional RAM Parity Optional 12K x 16 or 8K x 17 RAM Available Generation/Checking
* Automatic BC Retries
* Programmable BC Gap Tim

Applications

* with stringent height requirements. The BU-61585 ACE integrates dual transceiver, protocol, memory management, processor interface logic, and a total of 12K words of RAM in a choice of DIP or flat pack packages. The BU-61585 requires +5 V power and either -15 V or -12 V power. The BU-61585 internal
