DR-11525 Datasheet - DDC

16-BIT HIGH FREQUENCY HYBRID DIGITAL-TO-RESOLVER D/R CONVERTER

DR-11525 Features

* Accuracy Up to 1 Minute

* Operational Up to 10 kHz

* 2 Vrms, 6.81 Vrms, 11.8 VL-L, or Scalable Resolver Outputs

* 2 mA rms Output

* 16-Bit Resolution

* 8-Bit/2-Byte Double Buffered Transparent Latches

* DC-Coupled Reference Accepts Any Wavefo

DR-11525 General Description

The DR-11525 is a versatile multiplying digital-to-resolver converter. The digital input represents an angle, and the output is resolver type, sin/cos. The reference input will accept any waveform, even a sawtooth for CRT drive. Because the reference is dccoupled to the output, the DR-11525 can be .

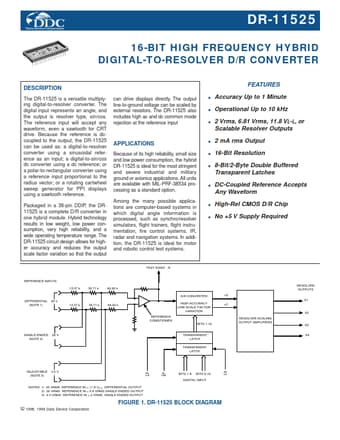

DR-11525 Datasheet (87.96 KB)

Preview of DR-11525 PDF

Datasheet Details

Part number:

DR-11525

Manufacturer:

DDC

File Size:

87.96 KB

Description:

16-bit high frequency hybrid digital-to-resolver d/r converter.
