SD-146221x-xs

2-Channel Synchro / Resolver to Digital Converter

SD-146221x-xs Features

* Synthesized Reference Option

* 1 Minute Accuracy Available (“S” Option only)

* Single +5 V Power Supply

* 10-, 12-, 14- or 16-Bit Programmable Resolution

* Small 54-Pin Ceramic Package

* BIT Output

* Velocity Output Replaces Tachometer

SD-146221x-xs General Description

The SD-14620 Series converters are small, low-cost, two-channel hybrid Synchro- or Resolver-to-Digital converters based on a singlechip monolithic. The SD-14620X“S” option offers synthesized reference circuitry to correct for phase shifts between the reference and signal inputs. The two channels are.

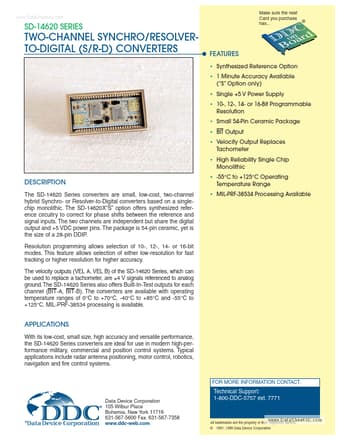

SD-146221x-xs Datasheet (190.99 KB)

Preview of SD-146221x-xs PDF

Datasheet Details

Part number:

SD-146221x-xs

Manufacturer:

DDC

File Size:

190.99 KB

Description:

2-channel synchro / resolver to digital converter.
