AFB0924M, AFB Datasheet - DELTA

AFB0924M - 92 x 92 x 25.4 MM SERIES Fan

AFB 92 x 92 x 25.4 MM SERIES DRAWING 25.4 0.5 (1.000 0.020) 92.0 0.5 (3.622 0.020) 4.0 0.3 (0.157 0.012) 82.5 0.3 (3.248 0.012) DIMENSIONS 4.0 0.3 (0.157 0.012) LABEL 10.0 (0.394) Air Pressure Bearing Type  Ball Bearings Material  Impeller & Frame : Plastic (UL 94V-0) Lead Wires :  UL 1007 AWG #24 OR Equivalent Red Wire Positive (+) Black Wire Negative (-) Weight : 99g (3.49 oz)  305.0 10.0 (12.008 0.394) 8- 4.5 0.3 (8- 0.177 0.012) 82.5 0.3 (3.248 0.012)

AFB-DELTA.pdf

This datasheet PDF includes multiple part numbers: AFB0924M, AFB. Please refer to the document for exact specifications by model.

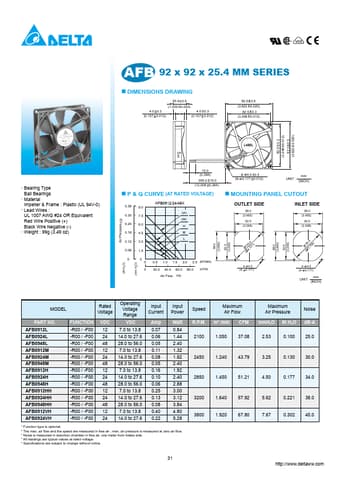

AFB0924M Datasheet Preview Page 2

Datasheet Details

Part number:

AFB0924M, AFB

Manufacturer:

DELTA

File Size:

466.31 KB

Description:

92 x 92 x 25.4 mm series fan.

Note:

This datasheet PDF includes multiple part numbers: AFB0924M, AFB.
Please refer to the document for exact specifications by model.
