DG7N80 - N-CHANNEL ENHANCEMENT MODE MOSFET

📥 Download Datasheet

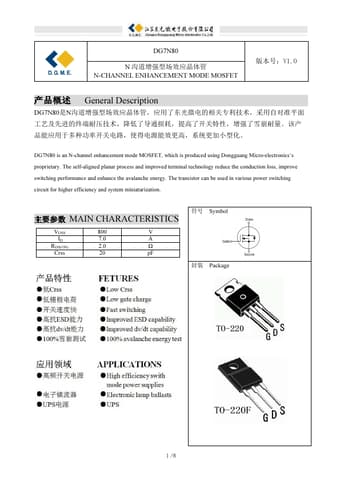

Preview of DG7N80 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number DG7N80
Manufacturer DGME
File Size 938.90 KB
Description N-CHANNEL ENHANCEMENT MODE MOSFET
Datasheet download datasheet DG7N80-DGME.pdf

DG7N80 Product details

Description

DG7N80N，， ，，，。 ，，。 DG7N80 is an N-channel enhancement mode MOSFET, which is produced using Dongguang Micro-electronics’s proprietary.The self-aligned planar process and improved terminal technology reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for higher efficiency and system miniaturization.MAIN CHARACTERISTICS VDSS ID RDS(ON) Crss 800 7.0 2.0 20 V A Ω pF Symbol Package 1 /8
