1N4454 SILICON SWITCHING DIODE

DIODES

Description

1N4454 SILICON SWITCHING DIODE .

📥 Download Datasheet

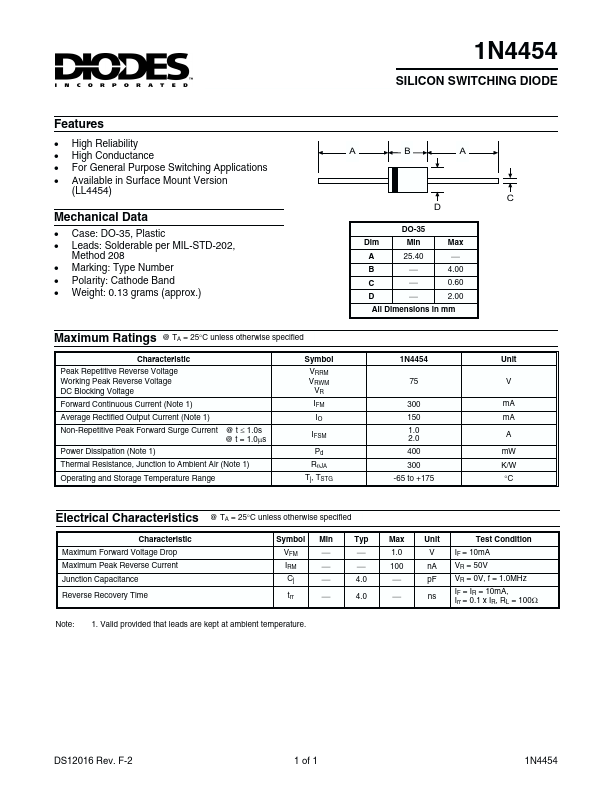

1N4454 Datasheet Preview — Preview of 1N4454 PDF

Datasheet Specifications

Part number: 1N4454
Manufacturer: DIODES ↗
File Size: 47.25 KB
Datasheet: 1N4454-DIODES.pdf
Description: SILICON SWITCHING DIODE

Features

* High Reliability
* High Conductance

Applications

* Available in Surface Mount Version (LL4454) Mechanical Data
* Case: DO-35, Plastic
* Leads: Solderable per MIL-STD-202, Method 208
* Marking: Type Number
* Polarity: Cathode Band
* Weight: 0.13 grams (approx. ) A B A C D DO-35 Dim Min Max A 25.40 ¾ B ¾ 4.00 C
