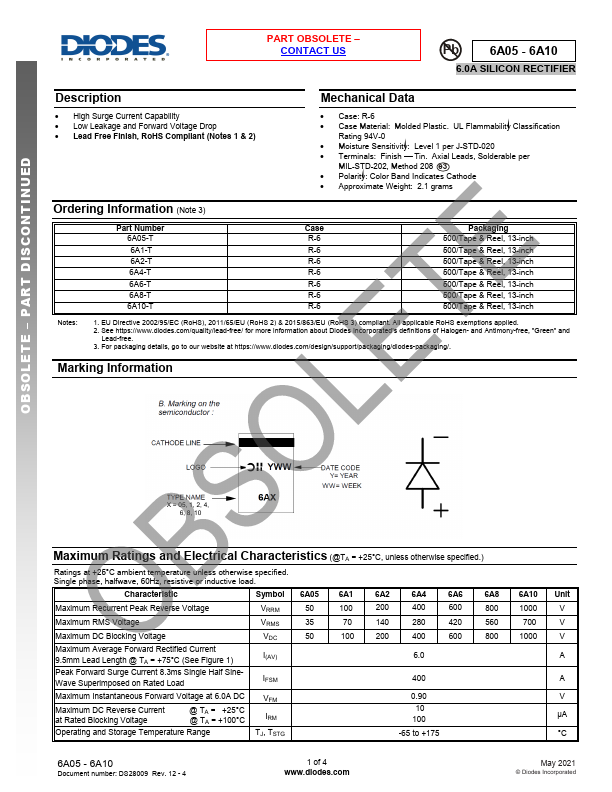

Datasheet Details
| Part number | 6A2 |
|---|---|
| Manufacturer | DIODES ↗ |
| File Size | 666.36 KB |
| Description | 6.0A SILICON RECTIFIER |
| Datasheet |
 6A2-DIODES.pdf
|
| Part number | 6A2 |
|---|---|
| Manufacturer | DIODES ↗ |
| File Size | 666.36 KB |
| Description | 6.0A SILICON RECTIFIER |
| Datasheet |
6A2-DIODES.pdf
|
High Surge Current Capability Low Leakage and Forward Voltage Drop Lead Free Finish, RoHS Compliant (Notes 1 & 2) Mechanical Data Case: R-6 Case Material: Molded Plastic. Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish Tin. Polarity: Color Band Indicates Cathode Approximate Weight: 2.1 grams
