AL3069 - FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER

Description

The AL3069 is a high-efficiency four-channel boost controller for WLED backlight applications.

It operates over a wide input voltage range, from 4.5V to 60V.

The current of the four channels is simply programmed from 20mA to 400mA with an external resistor.

Features

  • include cycle by cycle current limit, softstart, UVLO, programmable OVP, OTP, open/short LED protection, Schottky diode short and open protection, inductor short-circuit protection and VOUT short protection. The IC is available in SO-16 and TSSOP-16EP (Type DX) packages. Features.
  • Input Voltage Range: 4.5V to 60V.
  • Drivers up to Four Strings in Parallel, 250mA per String, 400mA Pulse Current.
  • Typical ±0.5% Current Matching.
  • Low Ripple for Low BOM Cost.

📥 Download Datasheet

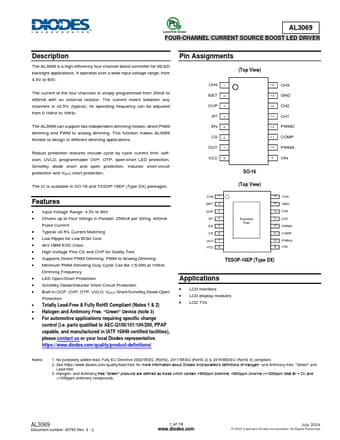

Datasheet preview – AL3069

Datasheet Details

Part number AL3069
Manufacturer Diodes Incorporated
File Size 1.27 MB
Description FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER
Datasheet download datasheet AL3069 Datasheet
Additional preview pages of the AL3069 datasheet.

📁 Similar Datasheet

  • AL300 - LCD Monitor Controller (ETC)
  • AL310 - Advanced LCD Controller (Averlogic Technologies)
  • AL3201 - SCR/ or Single Chip Reverb (ETC)
  • AL3201B - DRE Digital Reverb Engine (Wavefront)
  • AL360 - LED FLOOD LIGHT (AREALUX)
  • AL360A - Video Format Converter (Averlogic Technologies)
  • AL37204 - Video ASIC for 4-Channel Multiplexing (Averlogic Technologies)
Other Datasheets by DIODES
  • AL3065 - FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER
  • AL3065A - BOOST CONTROLLER
  • AL3066 - FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER
  • AL3022 - PWM BOOST CONTROLLER
  • AL3050 - SMALL PANEL BACKLIGHT LED DRIVER
  • AL3157 - HIGH EFFICIENCY 1x/2x CHARGE PUMP LED DRIVER
  • AL3158 - HIGH EFFICIENCY 1x/2x CHARGE PUMP
  • AL3159 - HIGH EFFICIENCY 1x/2x CHARGE PUMP

Full PDF Text Transcription

Click to expand full text
AL3069 FOUR-CHANNEL CURRENT SOURCE BOOST LED DRIVER Description The AL3069 is a high-efficiency four-channel boost controller for WLED backlight applications. It operates over a wide input voltage range, from 4.5V to 60V. The current of the four channels is simply programmed from 20mA to 400mA with an external resistor. The current match between any channels is ±0.5% (typical). Its operating frequency can be adjusted from 0.1MHz to 1MHz. The AL3069 can support two independent dimming modes: direct PWM dimming and PWM to analog dimming. This function makes AL3069 flexible to design in different dimming applications.
