AZ34063U

1.5A STEP-DOWN/STEP-UP/INVERTING DC-DC CONVERTER

DIODES

AZ34063U Features

* Operation from 3.0V to 36V Input

* Low Standby Current

* Current Limiting

* Output Switch Current to 1.5A

* Output Voltage Adjustable

* Operation Frequency up to 180kHz

* Precision 2% Reference

* Totally Lead-Free & Fully RoHS Complia

AZ34063U General Description

The AZ34063U is a monolithic, switching regulator, control circuit which contains the primary functions required for DC-DC converters. This device consists of an internal temperature compensated reference, voltage comparator, controlled duty-cycle oscillator with active current-limit circuit, driver.

AZ34063U Datasheet (503.46 KB)

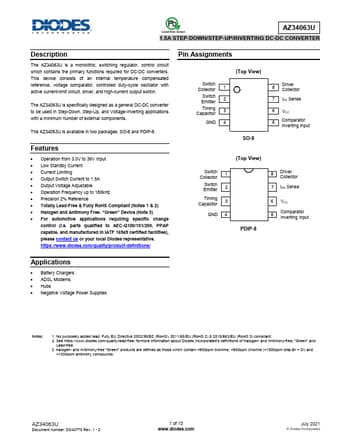

AZ34063U Datasheet Preview — Preview of AZ34063U PDF

Datasheet Details

Part number:

AZ34063U

Manufacturer:

DIODES ↗

File Size:

503.46 KB

Description:

1.5a step-down/step-up/inverting dc-dc converter.
