* Guard Ring Die Construction for Transient Protection
* Ideally Suited for Automated Assembly
* Low Power Loss, High Efficiency
* For Use in Low-Voltage, High-Frequency Inverters, Free Wheeling, and Polarity Protection Application
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
B540CE
473.25 KB
5.0a surface mount schottky barrier rectifier.

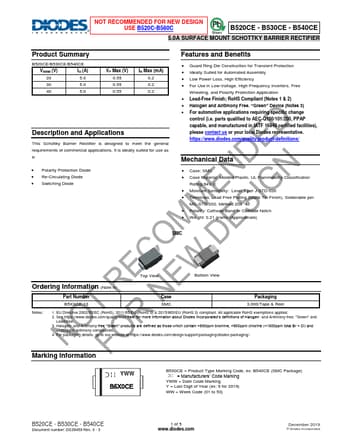

NOT RECOMMENDED FOR NEW DESIGN USE B520C-B560C
B520CE - B530CE - B540CE
5.0A SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Product Summary
B520CE/B530C.
