BAL99 - SURFACE-MOUNT SWITCHING DIODE

Datasheet Summary

Features

  • Fast Switching Speed: maximum of 4ns.
  • Low-Forward Voltage: maximum of 0.715V at 1mA.
  • Low Capacitance: maximum of 2pF.
  • Surface-Mount Package Ideally Suited for Automated Insertion.
  • For General Purpose Switching.

📥 Download Datasheet

Datasheet preview – BAL99

Datasheet Details

Part number BAL99
Manufacturer DIODES
File Size 244.88 KB
Description SURFACE-MOUNT SWITCHING DIODE
Datasheet download datasheet BAL99 Datasheet

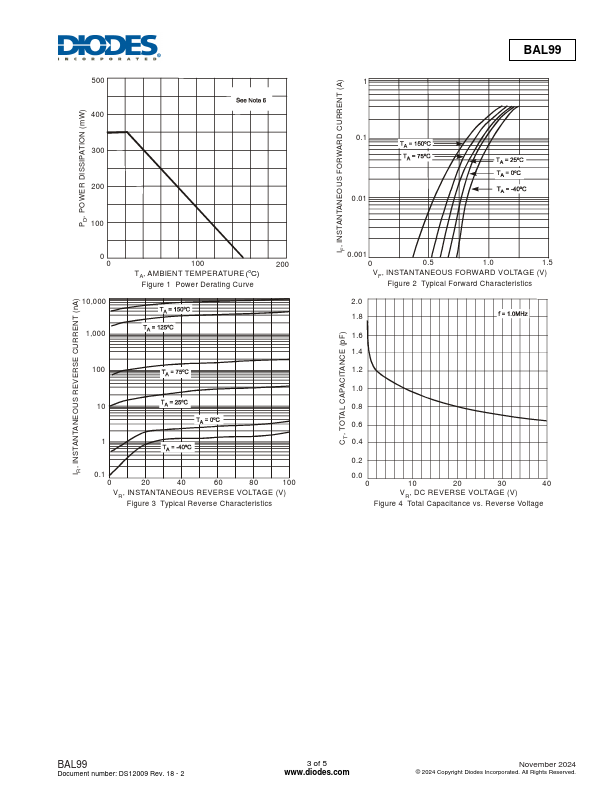

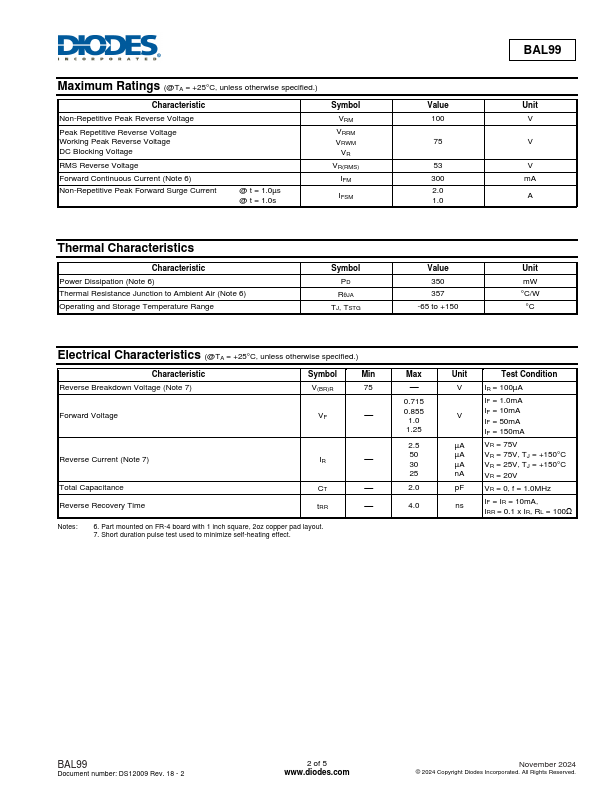

Additional preview pages of the BAL99 datasheet.

📁 Similar Datasheet

  • BAL99 - High-speed switching diode (nexperia)
  • BAL99 - SWITCHING DIODE (JCET)
  • BAL99 - Silicon Switching Diode (Infineon)
  • BAL99 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
  • BAL99 - SWITCHING DIODE (MLSM)
  • BAL99 - SPEED SWITCHING DIODES (Zetex)
  • BAL99 - Small Signal Fast Switching Diode (Vishay)
  • BAL99 - SURFACE MOUNT SWITCHING DIODE (Sunmate)
  • BAL99 - SWITCHING DIODE (Motorola)
  • BAL99 - SILICON PLANAR SWITCHING DIODE (CDIL)
Other Datasheets by DIODES

    Full PDF Text Transcription

    Click to expand full text

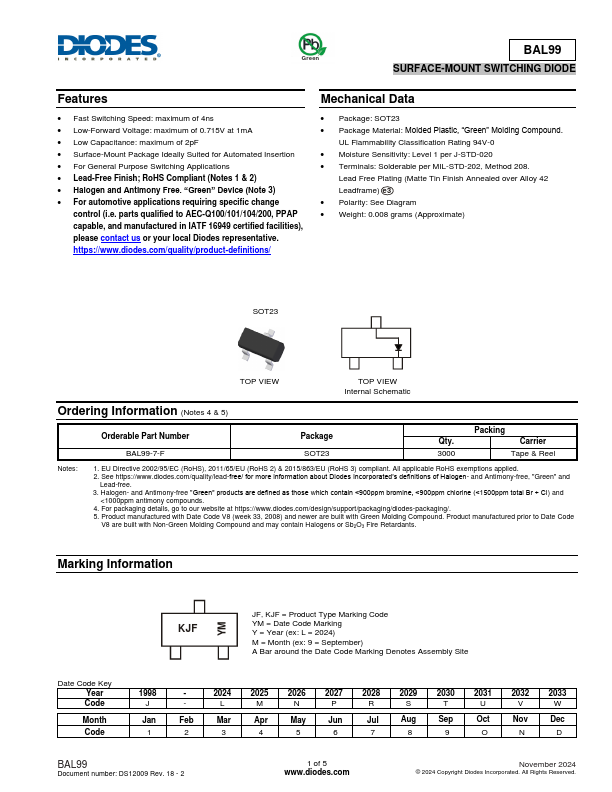

    BAL99 Green SURFACE-MOUNT SWITCHING DIODE Features • Fast Switching Speed: maximum of 4ns • Low-Forward Voltage: maximum of 0.715V at 1mA • Low Capacitance: maximum of 2pF • Surface-Mount Package Ideally Suited for Automated Insertion • For General Purpose Switching Applications • Lead-Free Finish; RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/ Mechanical Data • Package: SOT23 • Package Material: Molded Plastic, “Green” Molding Compound.
