BSS84WQ, 50V P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR

BSS84WQ 50V P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR Product Summary BVDSS -50V RDS(ON) 10Ω @ VGS = -5V ID TA = +25°C -164mA Descriptio.
and Applications This MOSFET is designed to meet the stringent requirements of automotive applications.

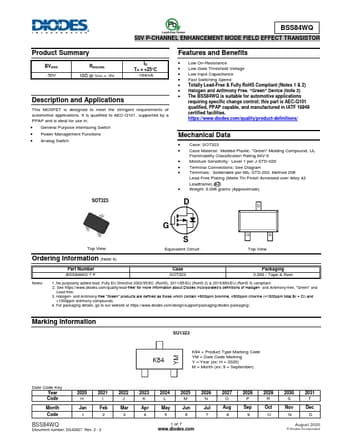

datasheet Preview Page 1 from Datasheet4u.com

BSS84WQ-DIODES.pdf

BSS84WQ Datasheet Preview — Preview of BSS84WQ PDF

Datasheet Details

Part number:

BSS84WQ

Manufacturer:

DIODES ↗

File Size:

528.16 KB

Description:

50V P-CHANNEL ENHANCEMENT MODE FIELD EFFECT TRANSISTOR

Features

* Low On-Resistance
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

Applications

* This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:
* General Purpose Interfacing Switch
* Power Management Functions
