DHVSD3004CS - HIGH VOLTAGE SURFACE MOUNT DUAL SWITCHING DIODE

Download the DHVSD3004CS datasheet PDF. This datasheet also covers the DHVSD3004AS variant, as both devices belong to the same high voltage surface mount dual switching diode family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Fast Switching Speed: Maximum of 50ns.
  • High Reverse Breakdown Voltage Rating: 350V.
  • Low Reverse Current: Maximum of 100nA when VR = 240V at Room Temperature.
  • Surface Mount Package Ideally Suited for Automated Insertion.
  • New Cutting-Edge Process Technology Used.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • For automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DHVSD3004AS-DIODES.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by Diodes Incorporated

Part Number Description
DHVSD3004AS HIGH VOLTAGE SURFACE MOUNT DUAL SWITCHING DIODE
DHVSD3004SS HIGH VOLTAGE SURFACE MOUNT DUAL SWITCHING DIODE
DHVSD521LP HIGH VOLTAGE SWITCHING DIODE
DHVSD521T5 HIGH VOLTAGE SWITCHING DIODE

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

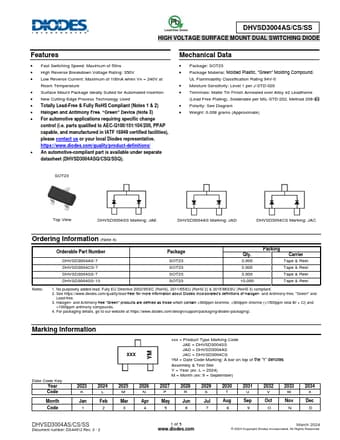

DHVSD3004AS/CS/SS HIGH VOLTAGE SURFACE MOUNT DUAL SWITCHING DIODE Features • Fast Switching Speed: Maximum of 50ns • High Reverse Breakdown Voltage Rating: 350V • Low Reverse Current: Maximum of 100nA when VR = 240V at Room Temperature • Surface Mount Package Ideally Suited for Automated Insertion • New Cutting-Edge Process Technology Used • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.
