DM5W11AQ - 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Download the DM5W11AQ datasheet PDF. This datasheet also covers the DM5W10AQ variant, as both devices belong to the same 3600w surface-mount transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Description

Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against load dump surge according to ISO16750-2.

ISO 16750-2, Pulse A and Pulse B ISO 7637-2 (Note 5) Pulse 1, Pulse 2a, Pulse 3a, Pulse 3b

Features

  • 3600W Peak Pulse Power Dissipation.
  • High Current Capability.
  • Low Reverse Current.
  • Low Thermal Resistance.
  • Low Power Loss and High Efficiency.
  • Excellent High Temperature Stability.
  • Meets ISO7637-2 Surge Capability.
  • Meets ISO16750-2 Surge Specification.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • The DM5W10AQ-DM5W43AQ are suitable for automotive.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (DM5W10AQ-DIODES.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
DM5150 1-Channel Video Decoder DAVICOM
DM5160 1-Channel 960H Video Decoder DAVICOM
DM52B13 16K EEPROM Seeq Technology
DM52B13H 16K EEPROM Seeq Technology
DM5374x-xxxx Coaxial / High Voltage and High Power Contacts Japan Aviation

Other Datasheets by Diodes Incorporated

Part Number Description
DM5W10AQ 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR
DM5W12AQ 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR
DM5W13AQ 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR
DM5W14AQ 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR
DM5W15AQ 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

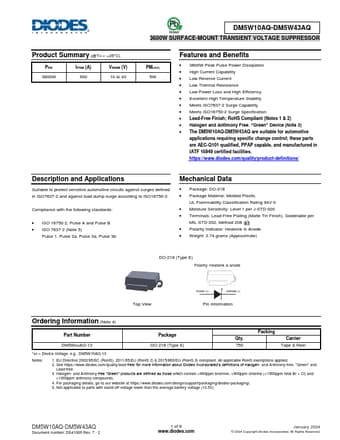

Product Summary (@TA = +25°C) PPK 3600W IFSM (A) 500 VRWM (V) 10 to 43 DM5W10AQ-DM5W43AQ 3600W SURFACE-MOUNT TRANSIENT VOLTAGE SUPPRESSOR PM(AV) 5W Features and Benefits  3600W Peak Pulse Power Dissipation  High Current Capability  Low Reverse Current  Low Thermal Resistance  Low Power Loss and High Efficiency  Excellent High Temperature Stability  Meets ISO7637-2 Surge Capability  Meets ISO16750-2 Surge Specification  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  The DM5W10AQ-DM5W43AQ are suitable for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.
