DMT6004SPS - 60V N-Channel MOSFET

Product Overview

DIODES

Datasheet Details

Part number	DMT6004SPS
Manufacturer	DIODES
File Size	674.26 KB
Description	60V N-Channel MOSFET
Datasheet	DMT6004SPS Datasheet

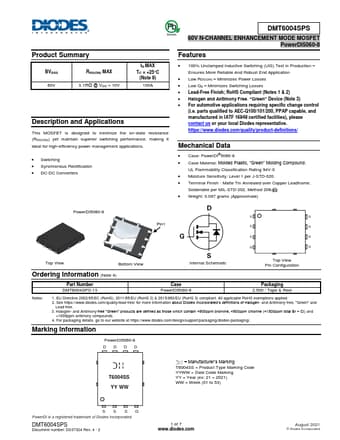

Additional preview pages of the DMT6004SPS datasheet.

Product details

Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Switching Synchronous Rectification DC-DC Converters 100% Unclamped Inductive Switching (UIS) Test in Production Ensures More Reliable And Robust End Application Low RDS(ON) Minimizes Power Losses Low Qg Minimizes Switching Losses

Features

BVDSS 60V RDS(ON) MAX 3.1mΩ @ VGS = 10V ID MAX TC = +25°C (Note 9) 100A.
