DMTH4001STLWQ

40V N-CHANNEL MOSFET

DMTH4001STLWQ Features

* BVDSS 40V RDS(ON) Max 0.85mΩ @ VGS = 10V ID Max TC = +25°C 300A Description and Applications This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:

* Motor controls

* DC-DC converter

DMTH4001STLWQ General Description

and Applications This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:
* Motor controls
* DC-DC converters
* Power managements POWERDI1012-8 Top View Pin1 Bottom View
* Rate.

DMTH4001STLWQ Datasheet (756.98 KB)

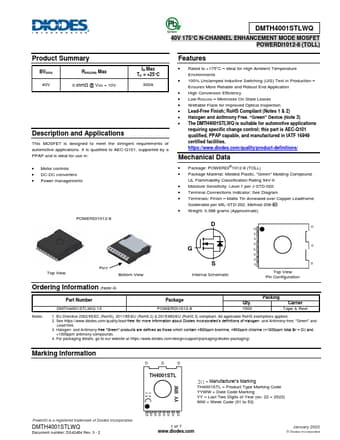

Preview of DMTH4001STLWQ PDF

Datasheet Details

Part number:

DMTH4001STLWQ

Manufacturer:

DIODES ↗

File Size:

756.98 KB

Description:

40v n-channel mosfet.
