GBU25JL 25A LOW VF BRIDGE RECTIFIER

DIODES

Description

Product Summary Green .

📥 Download Datasheet

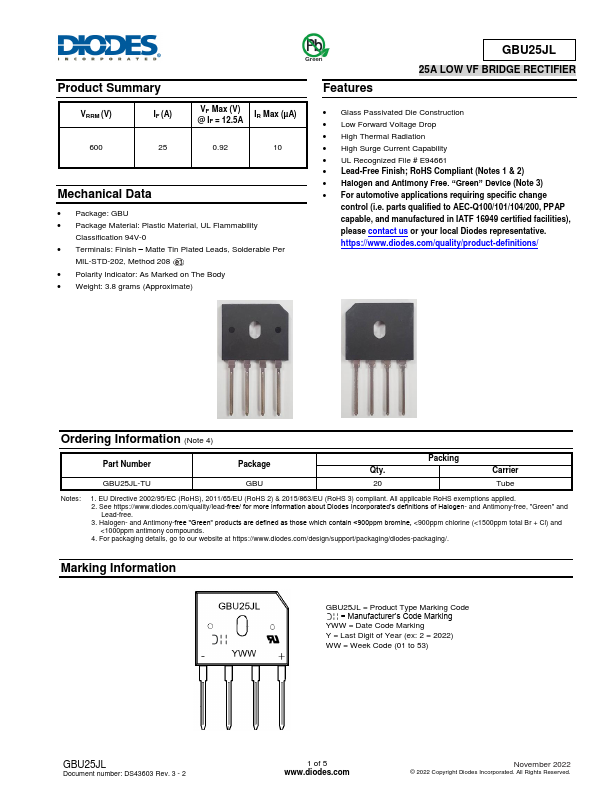

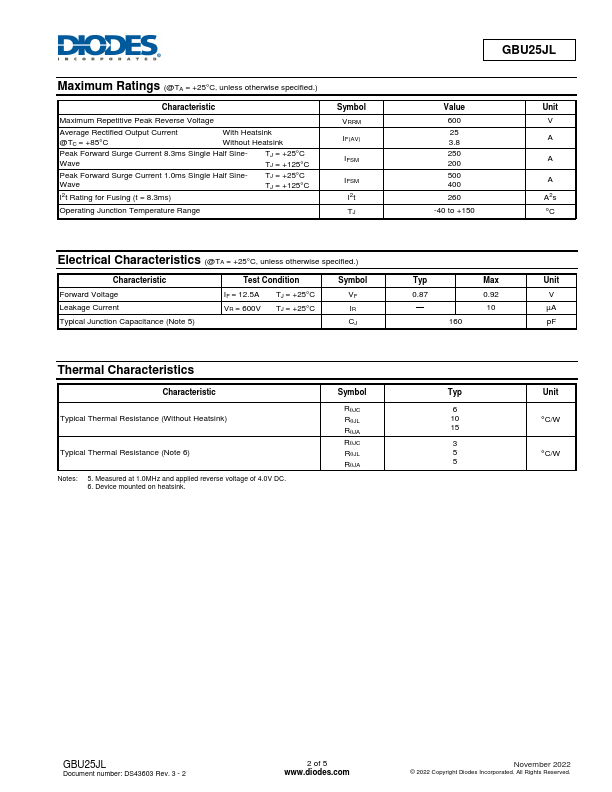

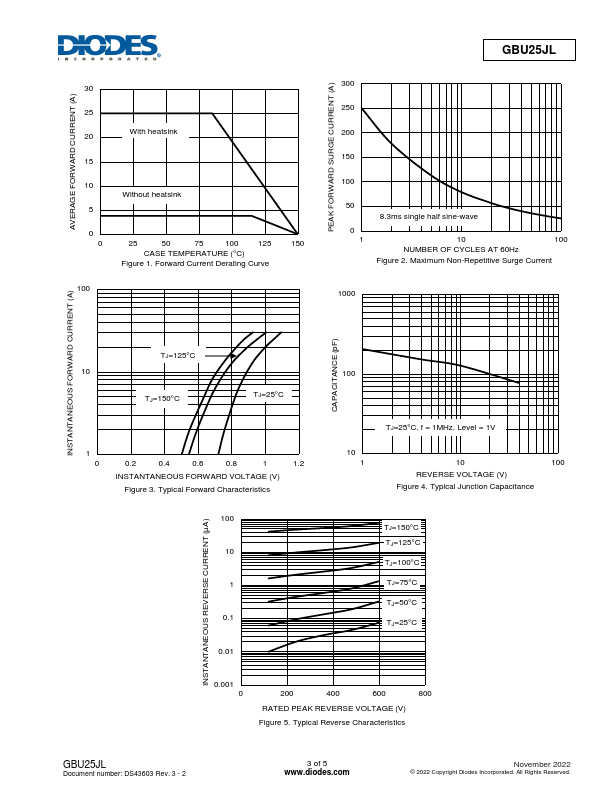

GBU25JL Datasheet Preview — Preview of GBU25JL PDF

Datasheet Specifications

Part number: GBU25JL
Manufacturer: DIODES ↗
File Size: 306.67 KB
Datasheet: GBU25JL-DIODES.pdf
Description: 25A LOW VF BRIDGE RECTIFIER

Features

* GBU25JL 25A LOW VF BRIDGE RECTIFIER VRRM (V) 600 IF (A) 25 VF Max (V) @ IF = 12.5A IR Max (µA) 0.92 10 Mechanical Data
* Package: GBU
* Package Material: Plastic Material, UL Flammability Classification 94V-0
* Terminals: Finish
* Matte Tin Plated Leads, Solderable Per MI

Applications

* requiring specific change control (i. e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www. diodes. com/quality/product-definitions/ Ordering Information (Note 4) Part Number

GBU25JL Distributors
