RS2M, RS2A 1.5A SURFACE MOUNT FAST RECOVERY RECTIFIER

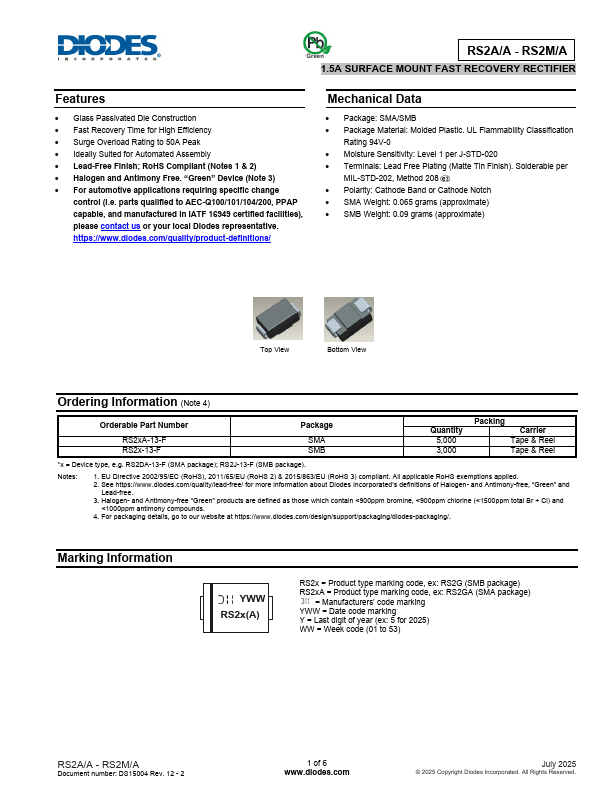

📥 Download Datasheet Datasheet Preview Page 1

Description

RS2A/A - RS2M/A Green 1.5A SURFACE MOUNT FAST RECOVERY RECTIFIER .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2M, RS2A. Please refer to the document for exact specifications by model.

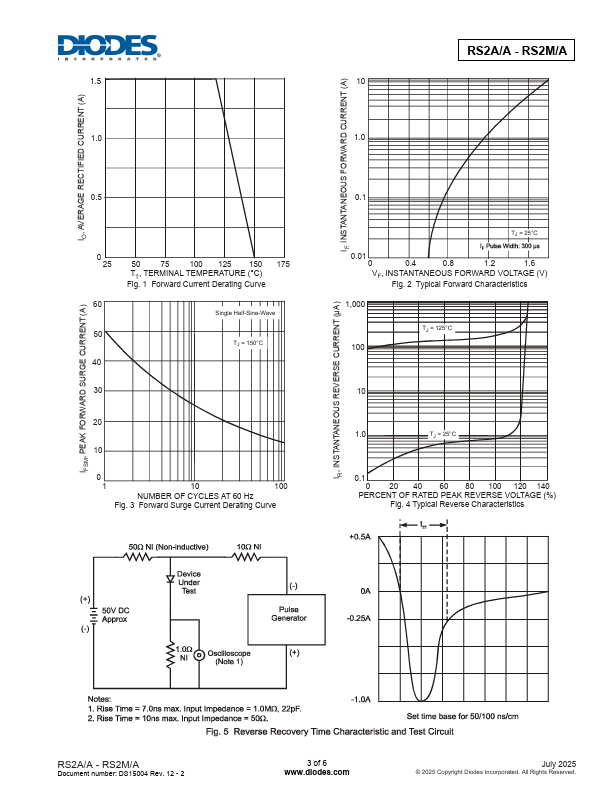

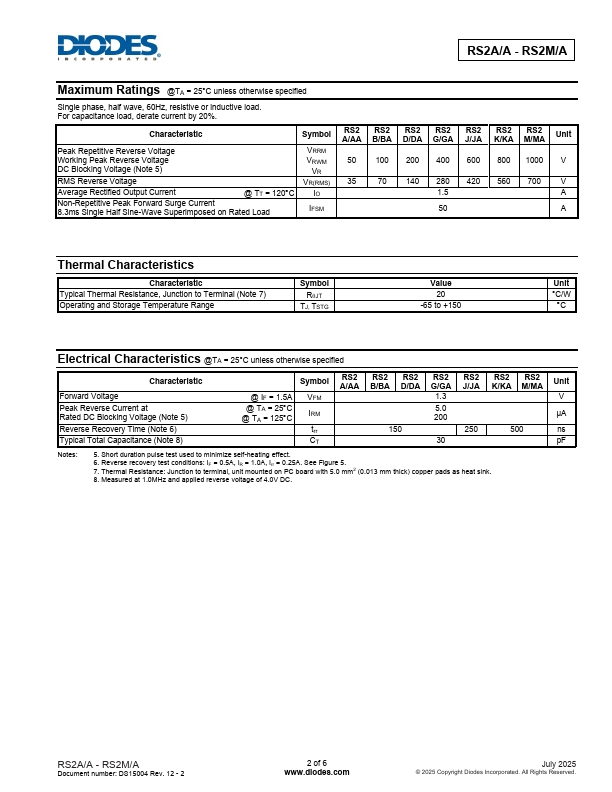

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS2M, RS2A
Manufacturer
DIODES ↗
File Size
263.67 KB
Datasheet
RS2A-DIODES.pdf
Description
1.5A SURFACE MOUNT FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS2M, RS2A.
Please refer to the document for exact specifications by model.

Features

* Glass Passivated Die Construction
* Fast Recovery Time for High Efficiency
* Surge Overload Rating to 50A Peak
* Ideally Suited for Automated Assembly
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note

Applications

* requiring specific change control (i. e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www. diodes. com/quality/product-definitions/ Mechanical Data
* Package: SMA/SMB
