SDM20U30Q Datasheet, Diode, DIODES

SDM20U30Q Features

• Diode
• Low Forward Voltage Drop
• Guard Ring Construction for Transient Protection
• Negligible Reverse Recovery Time
• Low Capacitance
• Ultra-Small

PDF File Details

Part number:

SDM20U30Q

Manufacturer:

DIODES ↗

File Size:

365.75kb

Download:

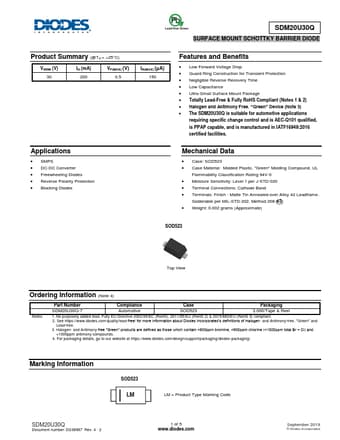

📄 Datasheet

Description:

Surface mount schottky barrier diode.

SDM20U30Q Application

• Applications
• SMPS
• DC-DC Converter
• Freewheeling Diodes
• Reverse Polarity Protection
• Blocking Diodes
