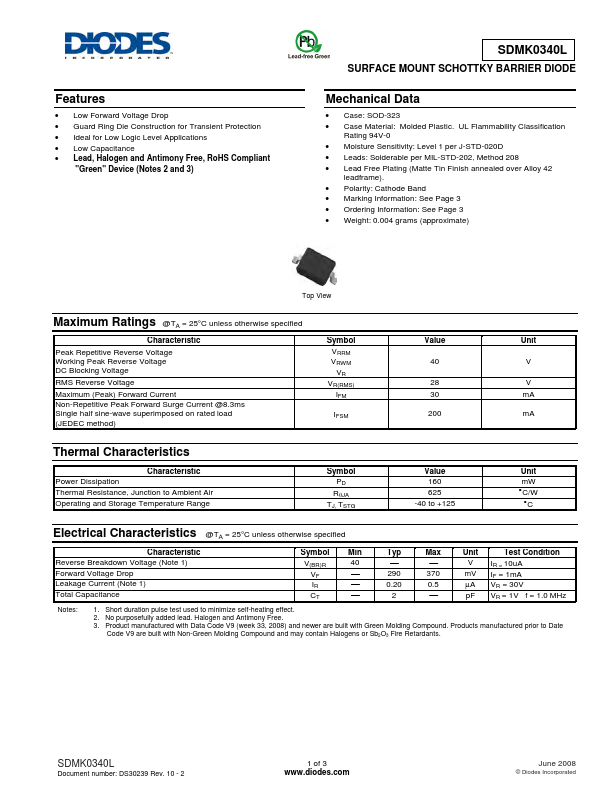

SDMK0340L
Features
- Low Forward Voltage Drop
- Guard Ring Die Construction for Transient Protection
- Ideal for Low Logic Level Applications
- Low Capacitance
- Lead, Halogen and Antimony Free, Ro HS pliant
"Green" Device (Notes 2 and 3)
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Mechanical Data
- Case: SOD-323
- Case Material: Molded Plastic. UL Flammability Classification
Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020D
- Leads: Solderable per MIL-STD-202, Method 208
- Lead Free Plating (Matte Tin Finish annealed over Alloy 42 leadframe).
- Polarity: Cathode Band

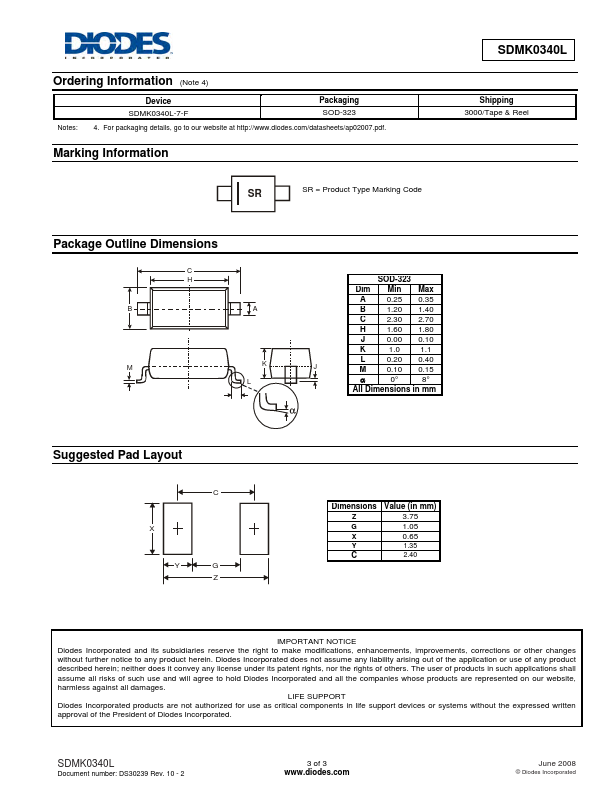

- Marking Information: See Page 3
- Ordering Information: See Page 3
- Weight: 0.004 grams (approximate)
Top View
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
RMS Reverse Voltage
Maximum (Peak) Forward Current Non-Repetitive Peak Forward Surge Current @8.3ms Single half sine-wave superimposed on rated load...
