SMBJ20AQ

600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

SMBJ20AQ Features

* 600W Peak Pulse Power Dissipation

* 5V to 200V Standoff Voltages

* Glass Passivated Die Construction

* Unidirectional and Bidirectional Versions Available

* Excellent Clamping Capability

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halo

SMBJ20AQ General Description

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with the following standards:

* ISO10605, C = 150pF, R = 330Ω: ▪ 30kV (Air Discharge) ▪ 30kV (Contact Discharge)
<.

SMBJ20AQ Datasheet (289.05 KB)

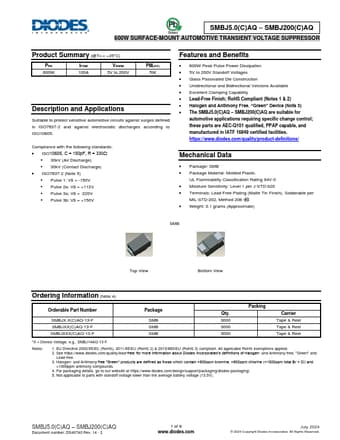

Preview of SMBJ20AQ PDF

Datasheet Details

Part number:

SMBJ20AQ

Manufacturer:

DIODES ↗

File Size:

289.05 KB

Description:

600w surface-mount automotive transient voltage suppressor.
SMBJ5.0(C)AQ

* SMBJ200(C)AQ 600W SURFACE-MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR Product Summary (@TA = +25°C) PPK 600W IFSM 100A VR.
