SMCJ10AQ, SMCJ5.0AQ Datasheet - DIODES

SMCJ10AQ AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with following standards: * ISO10605, C = 150pF, R = 330Ω: 30kV (Air Discharge) 30kV (Contact Discharge) * ISO7637-2 P.

SMCJ10AQ Features

* 1,500W Peak Pulse Power Dissipation

* 5V to 110V Standoff Voltages

* Glass Passivated Die Construction

* Unidirectional and Bidirectional Versions Available

* Excellent Clamping Capability

* Fast Response Time

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halog

SMCJ5.0AQ-DIODES.pdf

This datasheet PDF includes multiple part numbers: SMCJ10AQ, SMCJ5.0AQ. Please refer to the document for exact specifications by model.

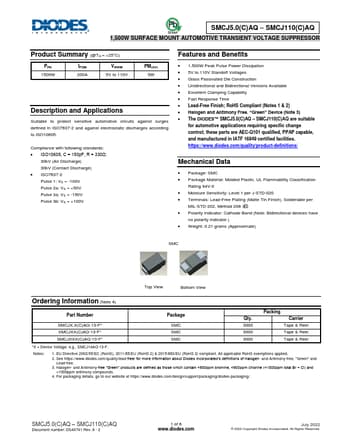

SMCJ10AQ Datasheet Preview Page 2 SMCJ10AQ Datasheet Preview Page 3

Datasheet Details

Part number:

SMCJ10AQ, SMCJ5.0AQ

Manufacturer:

DIODES ↗

File Size:

504.71 KB

Description:

Automotive transient voltage suppressor.

Note:

This datasheet PDF includes multiple part numbers: SMCJ10AQ, SMCJ5.0AQ.
Please refer to the document for exact specifications by model.
