SMCJ78CAQ

AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR

DIODES

SMCJ78CAQ Features

* 1,500W Peak Pulse Power Dissipation

* 5V to 110V Standoff Voltages

* Glass Passivated Die Construction

* Unidirectional and Bidirectional Versions Available

* Excellent Clamping Capability

* Fast Response Time

* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

* Halog

SMCJ78CAQ General Description

and Applications Suitable to protect sensitive automotive circuits against surges defined in ISO7637-2 and against electrostatic discharges according to ISO10605. Compliance with following standards:
* ISO10605, C = 150pF, R = 330Ω: 30kV (Air Discharge) 30kV (Contact Discharge)
* ISO7637-2 P.

SMCJ78CAQ Datasheet (504.71 KB)

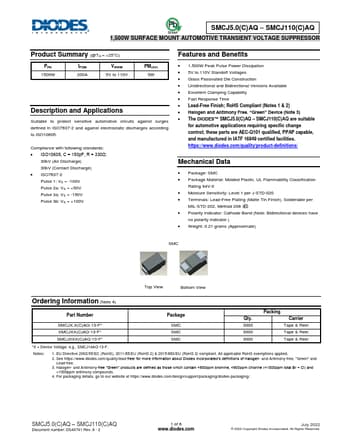

SMCJ78CAQ Datasheet Preview — Preview of SMCJ78CAQ PDF

Datasheet Details

Part number:

SMCJ78CAQ

Manufacturer:

DIODES ↗

File Size:

504.71 KB

Description:

Automotive transient voltage suppressor.
SMCJ5.0(C)AQ

* SMCJ110(C)AQ 1,500W SURFACE MOUNT AUTOMOTIVE TRANSIENT VOLTAGE SUPPRESSOR Product Summary (@TA = +25°C) PPK 1500W IFSM 200A .
