DB808 Features
* VOID FREE VACUUM DIE SOLDERING FOR MAXIMUM MECHANICAL STRENGTH AND HEAT DISSIPATION (Solder Voids: Typical < 2%, Max. < 10% of Die Area) BUILT-IN STRESS RELIEF MECHANISM FOR SUPERIOR RELIABILITY AND PERFORMANCE SURGE OVERLOAD RATING TO 400 AMPS PEAK SERIES DB800-DB810 and ADB804-ADB808 yAz {A| B

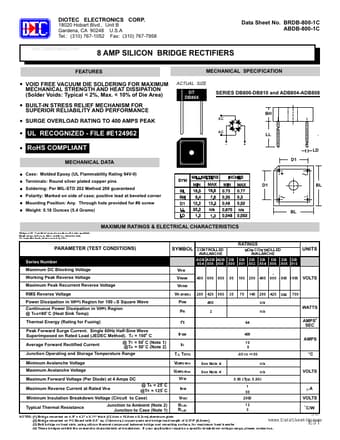

DB800_DIOTECElectronicsCorporation.pdf
Datasheet Details
DB808, DB800
DIOTEC Electronics Corporation
440.65 KB
(db800 - db810) 8 amp silicon bridge rectifiers.
This datasheet PDF includes multiple part numbers: DB808, DB800.
Please refer to the document for exact specifications by model.
