HBS608, HBS602, Glass Passivated Single-Phase 6.0Amp Surface Mount Bridge Rectifier

HBS602 THRU HBS610 Glass Passivated Single-Phase 6.0Amp Surface Mount Bridge Rectifier .

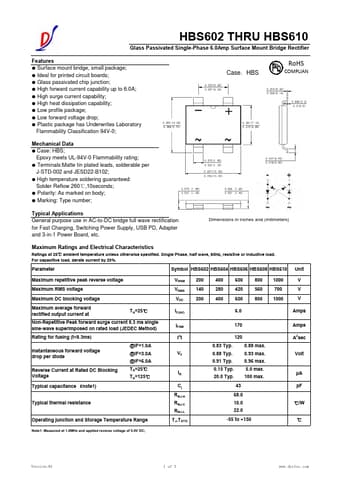

datasheet Preview Page 1 from Datasheet4u.com

HBS602-DIYI.pdf

HBS608 Datasheet Preview — This datasheet PDF includes multiple part numbers: HBS608, HBS602. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

HBS608, HBS602

Manufacturer:

DIYI

File Size:

395.49 KB

Description:

Glass Passivated Single-Phase 6.0Amp Surface Mount Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: HBS608, HBS602.
Please refer to the document for exact specifications by model.

Features

* Surface mount bridge, small package;
* Ideal for printed circuit boards;
* Glass passivated chip junction;
* High forward current capability up to 6.0A;
* High surge current capability;
* High heat dissipation capability;
* Low profile package;
* Low forward voltage

Applications

* General purpose use in AC-to-DC bridge full wave rectification for Fast Charging, Switching Power Supply, USB PD, Adapter and 3-in-1 Power Board, etc. Dimensions in inches and (milimeters) Maximum Ratings and Electrical Characteristics Ratings at 25℃ ambient temperature unless otherwise specified.
