SS115A, SS12A Surface Mount Schottky Rectifier

Description

SS12A~SS120A Surface Mount Schottky Rectifier .

📥 Download Datasheet

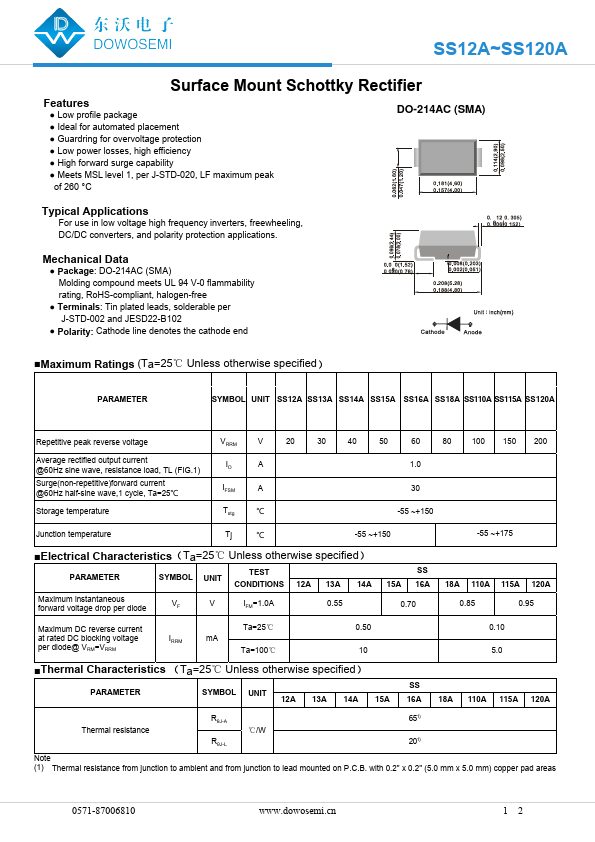

SS115A Datasheet Preview — This datasheet PDF includes multiple part numbers: SS115A, SS12A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SS115A, SS12A
Manufacturer: DOWOSEMI
File Size: 1.05 MB
Datasheet: SS12A-DOWOSEMI.pdf
Description: Surface Mount Schottky Rectifier
Note: This datasheet PDF includes multiple part numbers: SS115A, SS12A.
Please refer to the document for exact specifications by model.

Features

* Low profile package
* Ideal for automated placement
* Guardring for overvoltage protection
* Low power losses, high efficiency
* High forward surge capability
* Meets MSL level 1, per J-STD-020, LF maximum peak of 260 °C DO-214AC (SMA) ÄÄÅÅÉÉÍÎÉÌÈÈËËÅÅÆÄÄÄÊÊ ÄÄÅÅÄÄÆËÇÌÈÈÉ

Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. ÄÄÑÑÄÉÄÇÆÈÄÄÅÑÉÐÎÄÇÎÊÊ Mechanical Data
* Package: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: Tin plated
